PH50AR

Hammond Power Solutions | sImp-Cu | Industrial Controls
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

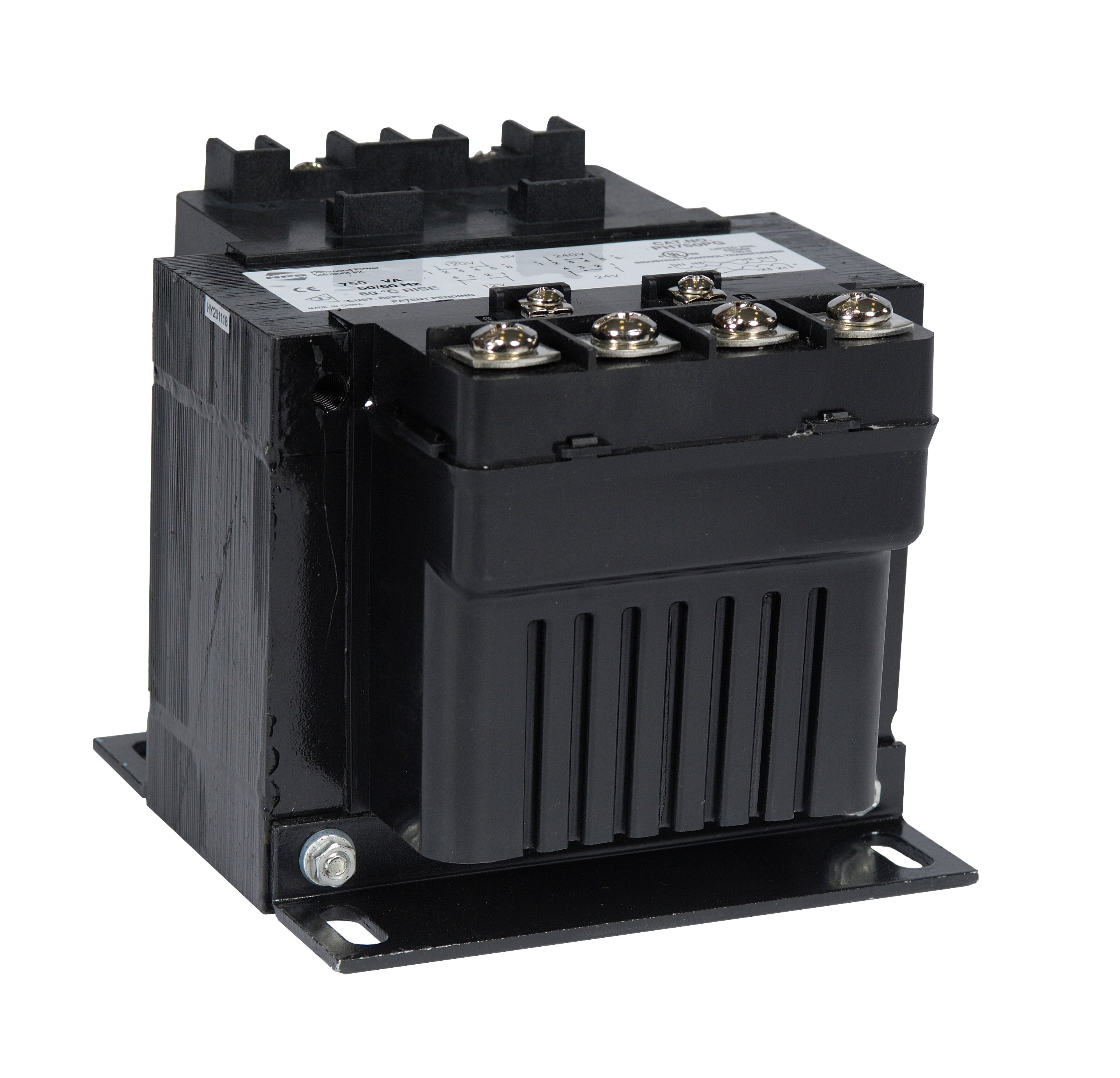

HPS 50 VA Industrial Control Transformer with 600 Primary and 12 x 24 Secondary and 4.17/2.08 Amps output at 60 HzHz. HPS Part Number: PH50AR with Overall Dims of (3 x 3.81 x 3.19) and an approx weight of 2.7 Lbs. Optional Fuse Kit Part Number:PFK1

$75.10

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

VA Rating

50

Secondary Voltage

12 x 24

Primary Voltage

600

Frequency

60 Hz

Output Amps

4.17/2.08

Warranty

Lifetime (Limited)

Overall Dims

3 x 3.81 x 3.19

Termination

combination slot/Phillips #6 screw complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)

Construction

high quality silicon steel laminations

UPC

803423019730

UNSPSC

39121026

UL

Listed

Width

3

Height

3.19

Length

3.81

Mounting Centers Length

2.25

Mounting Centers Width

2.5

Optional Fuse Kit

PFK1

Mounting Slot Dims

0.22 x 0.44

Replaced Catalog Number

PT50AR

Finger guard

Optional finger safe terminal covers available

Not available at this time.
