PH250QR

Hammond Power Solutions | sImp-Cu | Industrial Controls
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

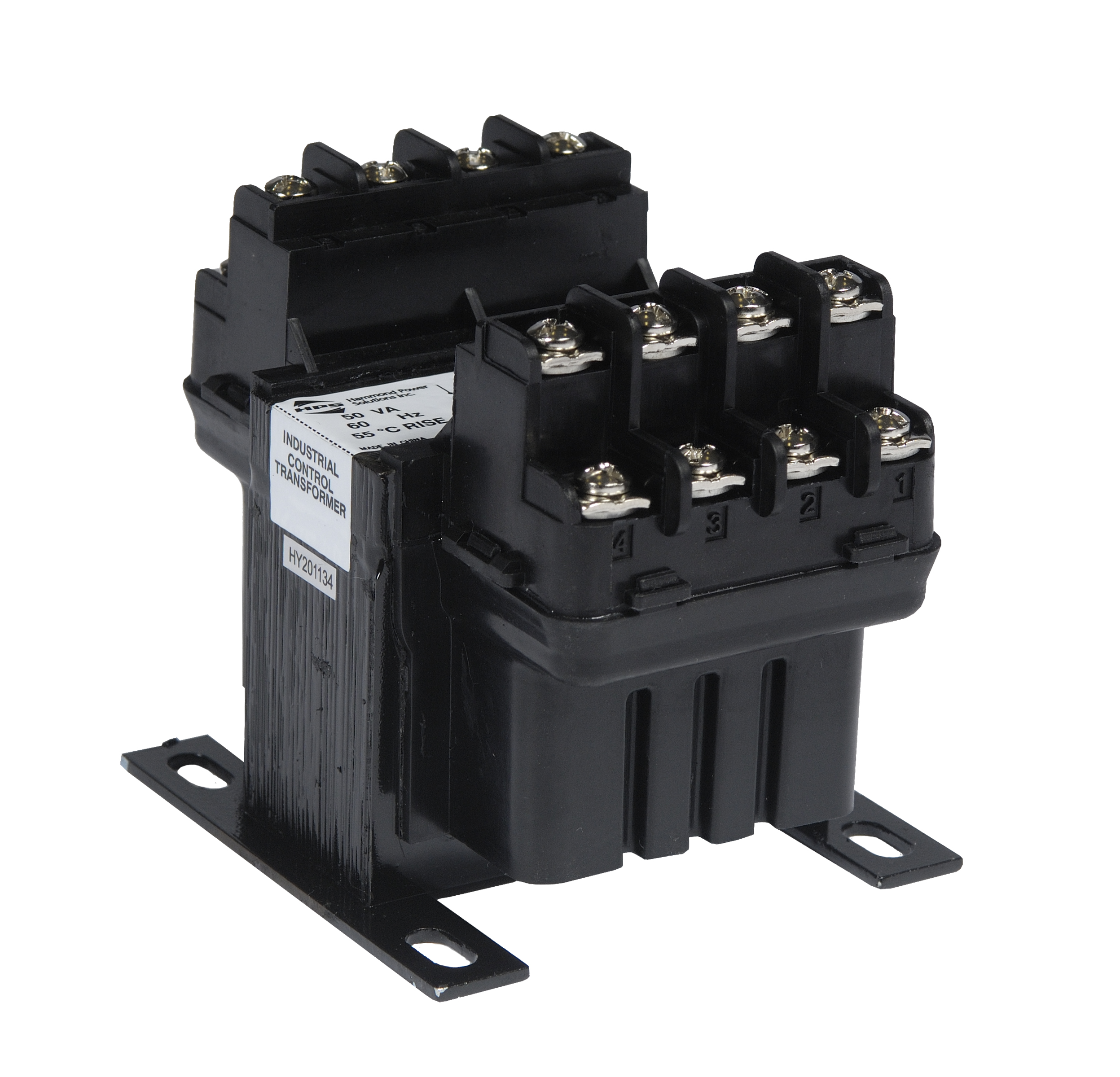

HPS 250 VA Industrial Control Transformer with 240 x 480 Primary and 12 x 24 Secondary and 20.8/10.4 Amps output at 50/60 HzHz. HPS Part Number: PH250QR with Overall Dims of (4.5 x 5.44 x 3.81) and an approx weight of 7.5 Lbs. Optional Fuse Kit Part Number:PFK2

$144.30

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

VA Rating

250

Secondary Voltage

12 x 24

Primary Voltage

240 x 480

Frequency

50/60 Hz

Output Amps

20.8/10.4

Warranty

Lifetime (Limited)

Overall Dims

4.5 x 5.44 x 3.81

Termination

combination slot/Phillips #6 screw complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)

Construction

high quality silicon steel laminations

UPC

803423078096

UNSPSC

39121026

UL

Listed

Width

4.5

Height

3.81

Length

5.44

Mounting Centers Length

3.13

Mounting Centers Width

3.75

Optional Fuse Kit

PFK2

Mounting Slot Dims

0.22 x 0.75

Replaced Catalog Number

PT250QR

Finger guard

Optional finger safe terminal covers available
