PH1500MQMJ

Hammond Power Solutions | sImp-Cu | Industrial Controls
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

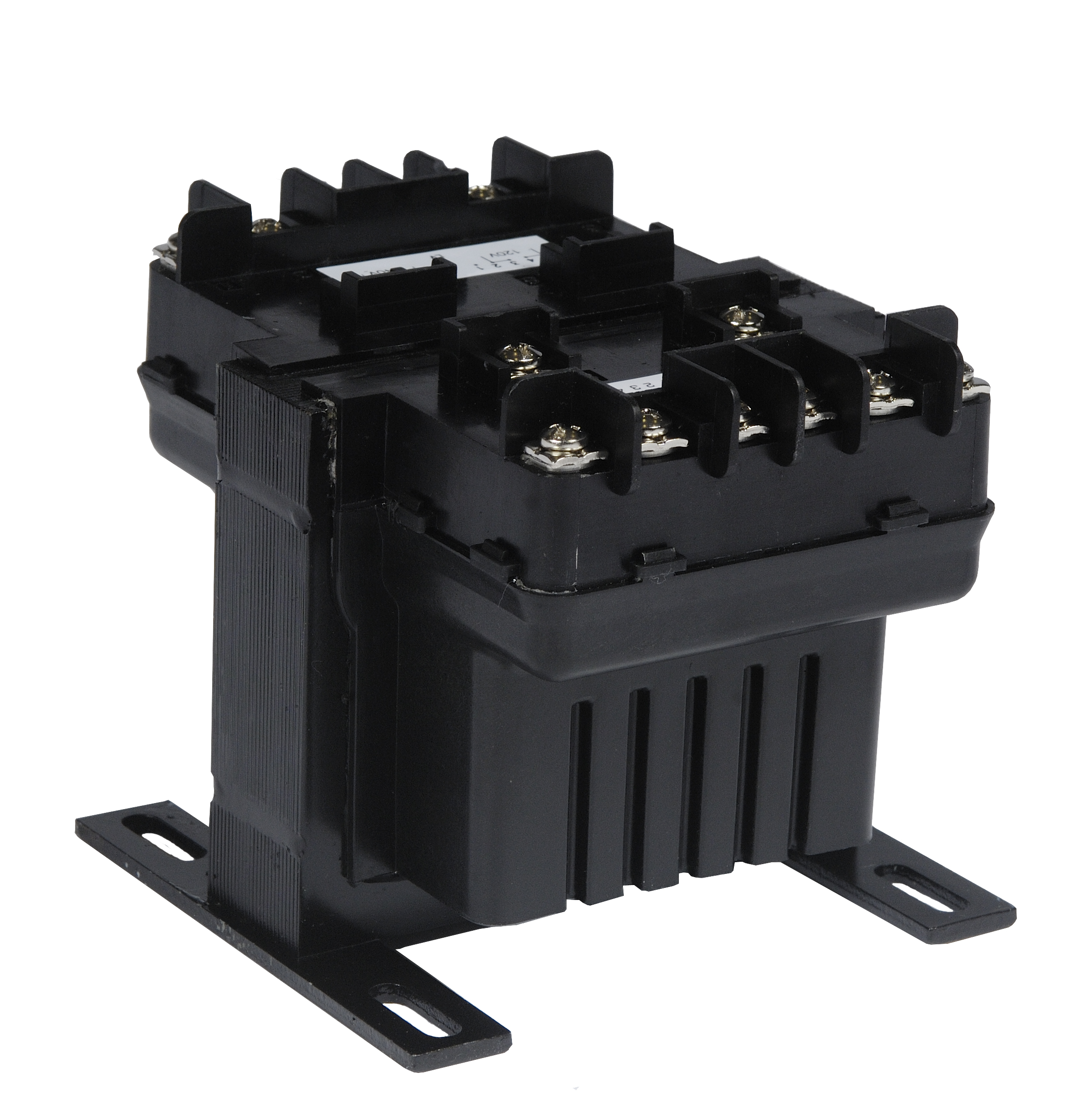

HPS 1500 VA Industrial Control Transformer with 240 x 480 Primary and 120 x 240 Secondary and 12.5/6.25 Amps output at 50/60 HzHz. HPS Part Number: PH1500MQMJ with Overall Dims of (5.25 x 8.19 x 4.94) and an approx weight of 32 Lbs. Optional Fuse Kit Part Number:PFK3

$349.10

Min: 1  Mult: 1

Product Attributes

Availability Note

Normally in stock at the Factory can drop ship in 1-2 days

VA Rating

1500

Secondary Voltage

120 x 240

Primary Voltage

240 x 480

Frequency

50/60 Hz

Output Amps

12.5/6.25

Warranty

Lifetime (Limited)

Overall Dims

5.25 x 8.19 x 4.94

Termination

combination slot/Phillips #6 screw complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)

Construction

high quality silicon steel laminations

UPC

803423078027

UNSPSC

39121026

UL

Listed

Width

5.25

Height

4.94

Length

8.19

Mounting Centers Length

6.06

Mounting Centers Width

4.5

Optional Fuse Kit

PFK3

Mounting Slot Dims

0.38 x 1.00

Replaced Catalog Number

PT1500MQMJ

Finger guard

Optional finger safe terminal covers available

Not available at this time.
