PH100MLI

Hammond Power Solutions | sImp-Cu | Industrial Controls
green-check-icon Total Stock: 3
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

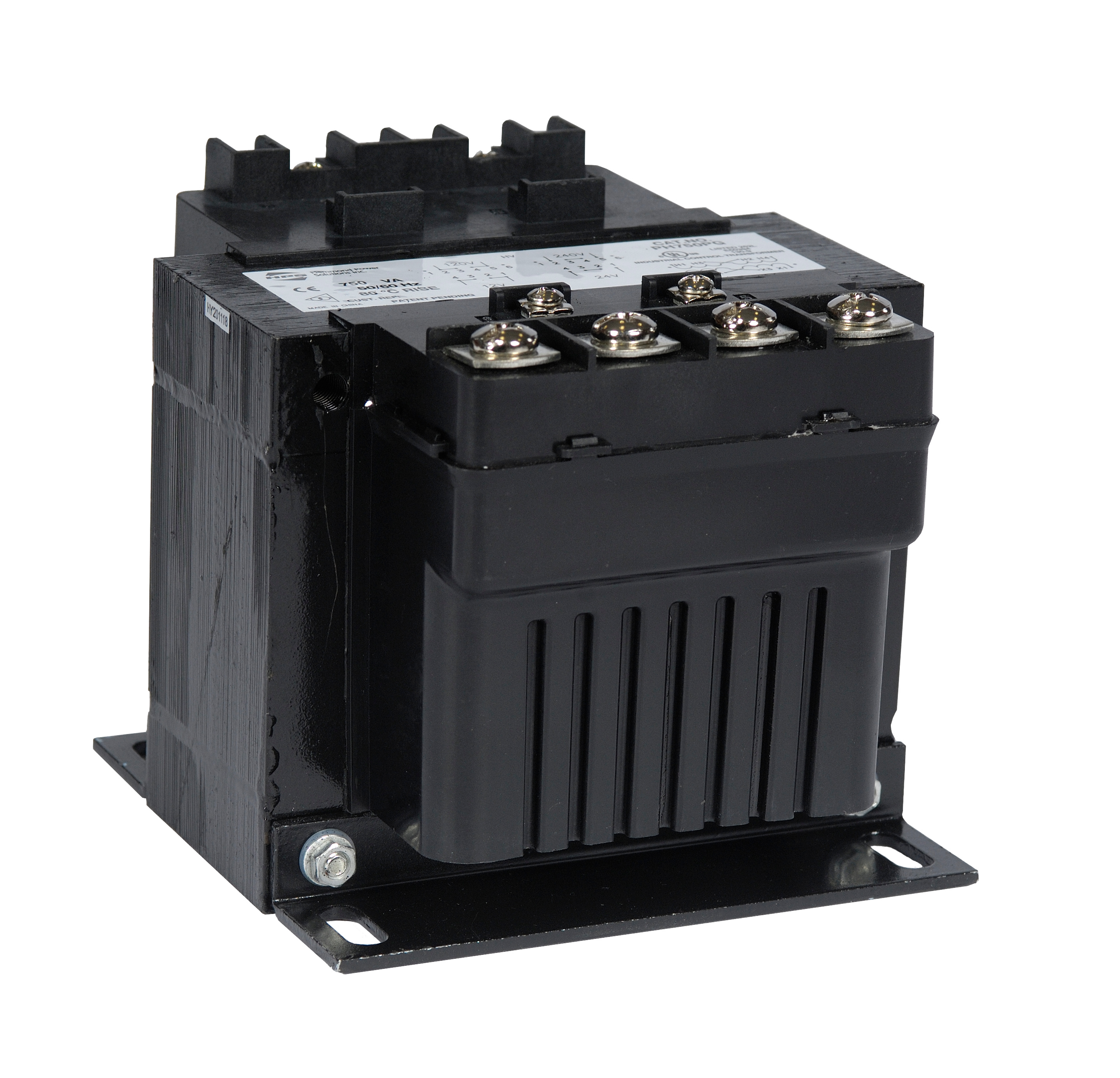

HPS 100 VA Industrial Control Transformer with 480/240 Primary and 120/25 Secondary and 0.87/4.17 Amps output at 50/60 HzHz. HPS Part Number: PH100MLI with Overall Dims of (3.25 x 4.69 x 3.63) and an approx weight of 5.2 Lbs. Optional Fuse Kit Part Number:PFK5

$84.80

Min: 1  Mult: 1

Product Attributes

Availability Note

Normally in stock at the Factory can drop ship in 1-2 days

VA Rating

100

Secondary Voltage

120/25

Primary Voltage

480/240

Frequency

50/60 Hz

Output Amps

0.87/4.17

Warranty

Lifetime (Limited)

Overall Dims

3.25 x 4.69 x 3.63

Termination

combination slot/Phillips #6 screw complete with SEMS washer (suitable for 18 AWG to 14 AWG solid or 14 AWG stranded wire)

Construction

high quality silicon steel laminations

UPC

803423078355

UNSPSC

39121026

UL

Listed

Width

3.25

Height

3.63

Length

4.69

Mounting Centers Length

2.63

Mounting Centers Width

2.63

Optional Fuse Kit

PFK5

Mounting Slot Dims

0.22 x 0.44

Replaced Catalog Number

PT100MLI

Finger guard

Optional finger safe terminal covers available

Not available at this time.
