FS500AR

Hammond Power Solutions | sFus-Cu | Enclosed
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

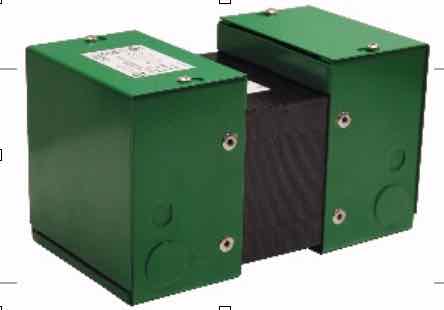

HPS 500 VA indoor enclosed transformer with 600 Primary and 12 x 24 Secondary Voltage at 60 Hz and 41.7/20.8 Output Amps. Overall Dims (4.6 x 6.8 x 4.1) at 11.8 Lbs. HPS Part Number:FS500AR

$175.90

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

Secondary Voltage

12 x 24

Primary Voltage

600

VA Rating

500

Frequency

60 Hz

Output Amps

41.7/20.8

CE VA Rating

300

Enclosure

Rugged TYPE 1 with split side covers provides easy access to wiring compartment

Overall Dims

4.6 x 6.8 x 4.1

Mounting Centers Width

3.3

Mounting Centers Length

4.5

UPC

803423107499

UNSPSC

39121026

Warranty

15 Year

Mounting slot size

0.31 x 0.81

Length

6.8

Height

4.1

Width

4.6

Construction

Bolted core

Connections

Solid terminal block with standard combination screw

Not available at this time.
