QC75PEKB

Hammond Power Solutions | sTitan-Cu | Encapsulated
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

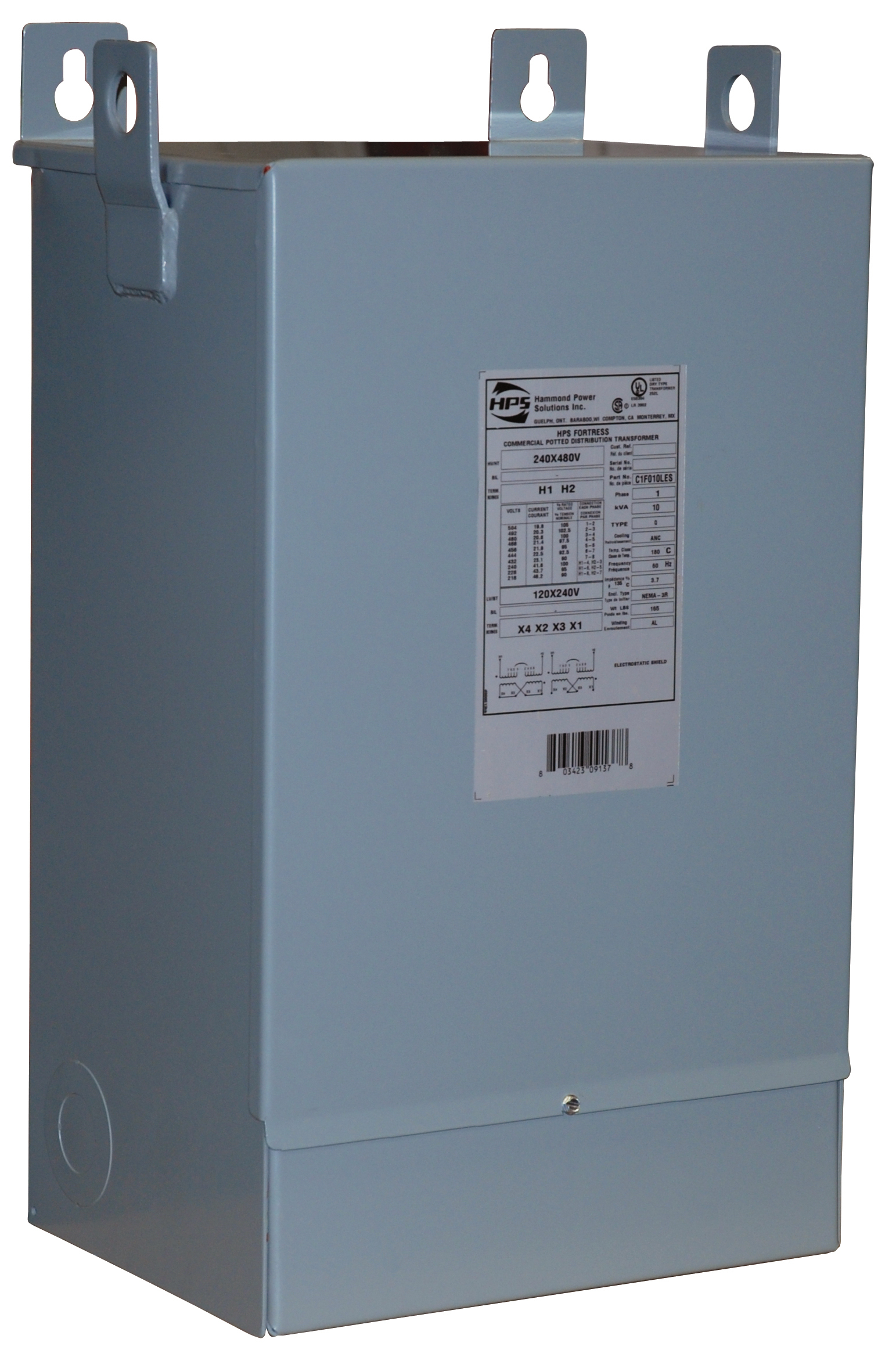

HPS encapsulated 0.75 kVA Transformer with CU + Shield - above 500VA windings and 600 Primary and 120/240 Secondary Voltage Unit is in a Type 3R Enclosure with 80C Temperature Rise.

$225.40

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

UNSPSC

39121027

UPC

803423031961

kVA

0.75 kVA

Primary Voltage

600

Secondary Voltage

120/240

Winding Material

CU + Shield - above 500VA

Temperature Rise & Insulation Class

80C

Enclosure

Type 3R

BIL Rating

10 kV

Frequency

60 Hz (50/60 Hz available)

Mounting

Floor or wall/ceiling mounting available

Sound Level

Meets NEMA ST-20 standards

UL

File: E258346

Warranty

10 Years
