SG3N0015LE

Hammond Power Solutions | sSenG3-1Al | Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

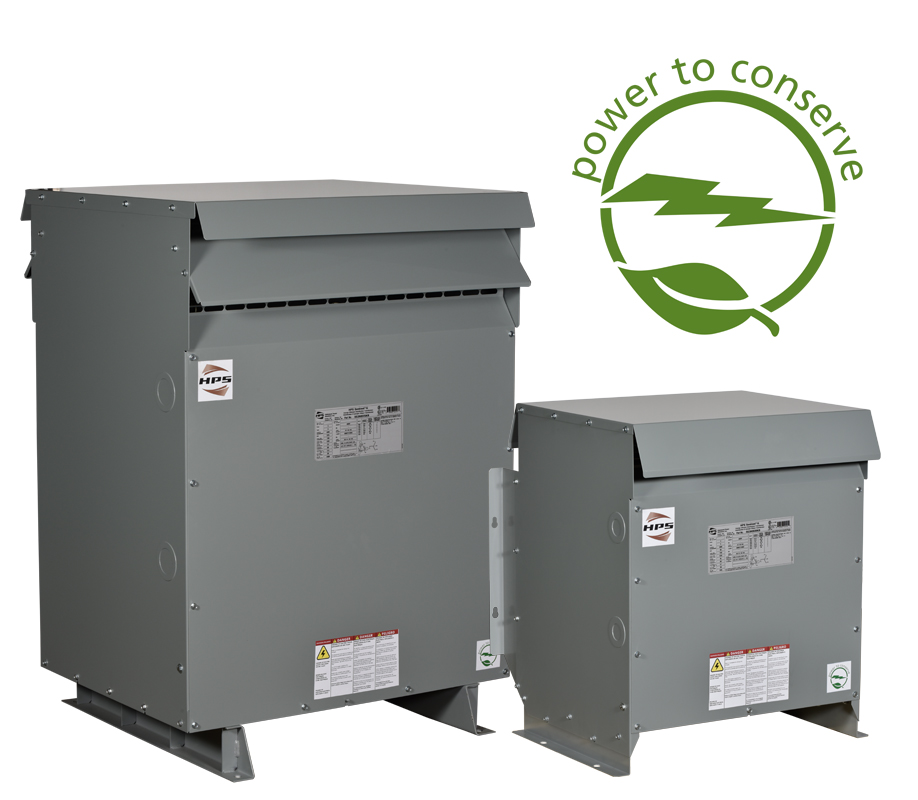

HPS General Efficient 15 kVA with 240x480 Primary and and 120/240 Secondary Voltage Phase - Type current designs .

$1,180.00

Min: 1  Mult: 1

Product Attributes

Availability Note

Normally in stock at the Factory can drop ship in 1-2 days

Shipping Notes

Over sized Item Weighing 228 Lbs. Must ship LTL Truck

UNSPSC

39121001

UPC

803423140632

Replaced Catalog Number

NMF015LE

TYPE

General

Generation

current designs

Phase (Pri-Sec)

1PH Dual-Dual

kVA

15

Primary Voltage

240x480

Secondary Voltage

120/240

K Rating

N/A

Winding Material/Electrostatic Shield

N/A

Temperature Rise at standard 220°C Insul Class

N/A

Enclosure

N/A

Sound Level

N/A

Special Duty

Default

BIL Rating

10 kV

Enclosure Finish

ANSI 61 Grey, UL50

Frequency

60 Hz (optional 50/60 Hz available)

Impedance

Typically 1.8% to 7.5%

UL Listed

File: E112313
