SG3L0050HE

Hammond Power Solutions | sSenG3-1Al | Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

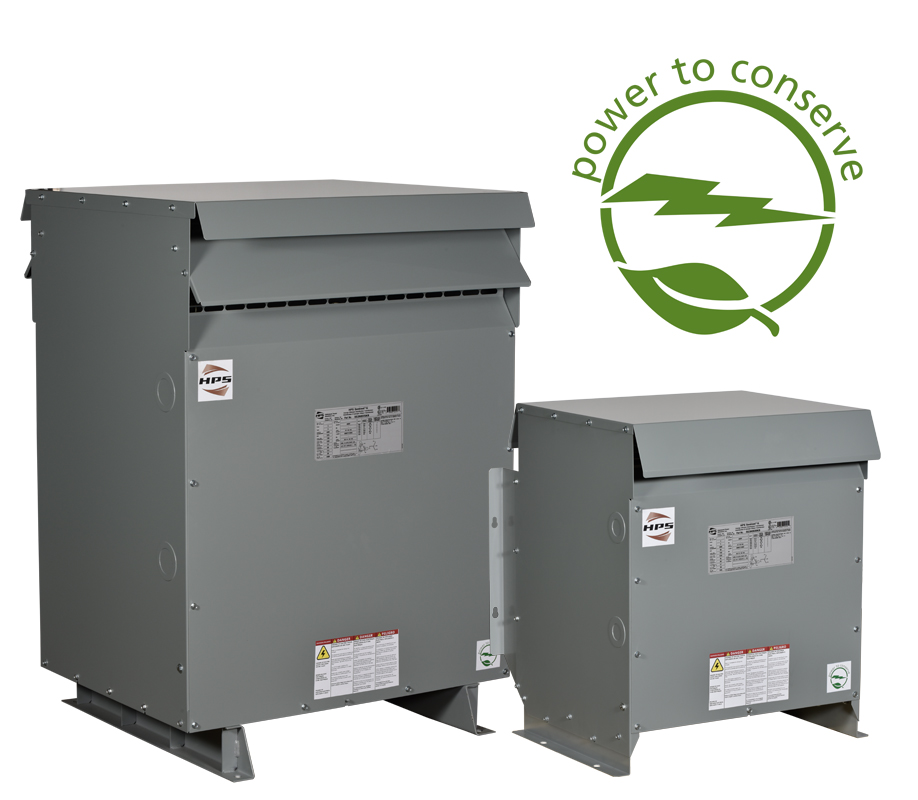

HPS General Efficient 50 kVA with 416 - (3PH 416D) Primary and and 120/240 Secondary Voltage Phase - Type current designs .

$2,960.00

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

UPC

803423141028

UNSPSC

39121001

Replaced Catalog Number

NMF050HE

TYPE

General

Generation

current designs

Phase (Pri-Sec)

1PH Single-Dual

kVA

50

Primary Voltage

416 - (3PH 416D)

Secondary Voltage

120/240

K Rating

N/A

Winding Material/Electrostatic Shield

N/A

Temperature Rise at standard 220°C Insul Class

N/A

Enclosure

N/A

Sound Level

N/A

Special Duty

Default

BIL Rating

10 kV

Enclosure Finish

ANSI 61 Grey, UL50

Frequency

60 Hz (optional 50/60 Hz available)

Impedance

Typically 1.8% to 7.5%

UL Listed

File: E112313
