SG3A1000PB

Hammond Power Solutions | sSen-G3-Al | Electrical
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant

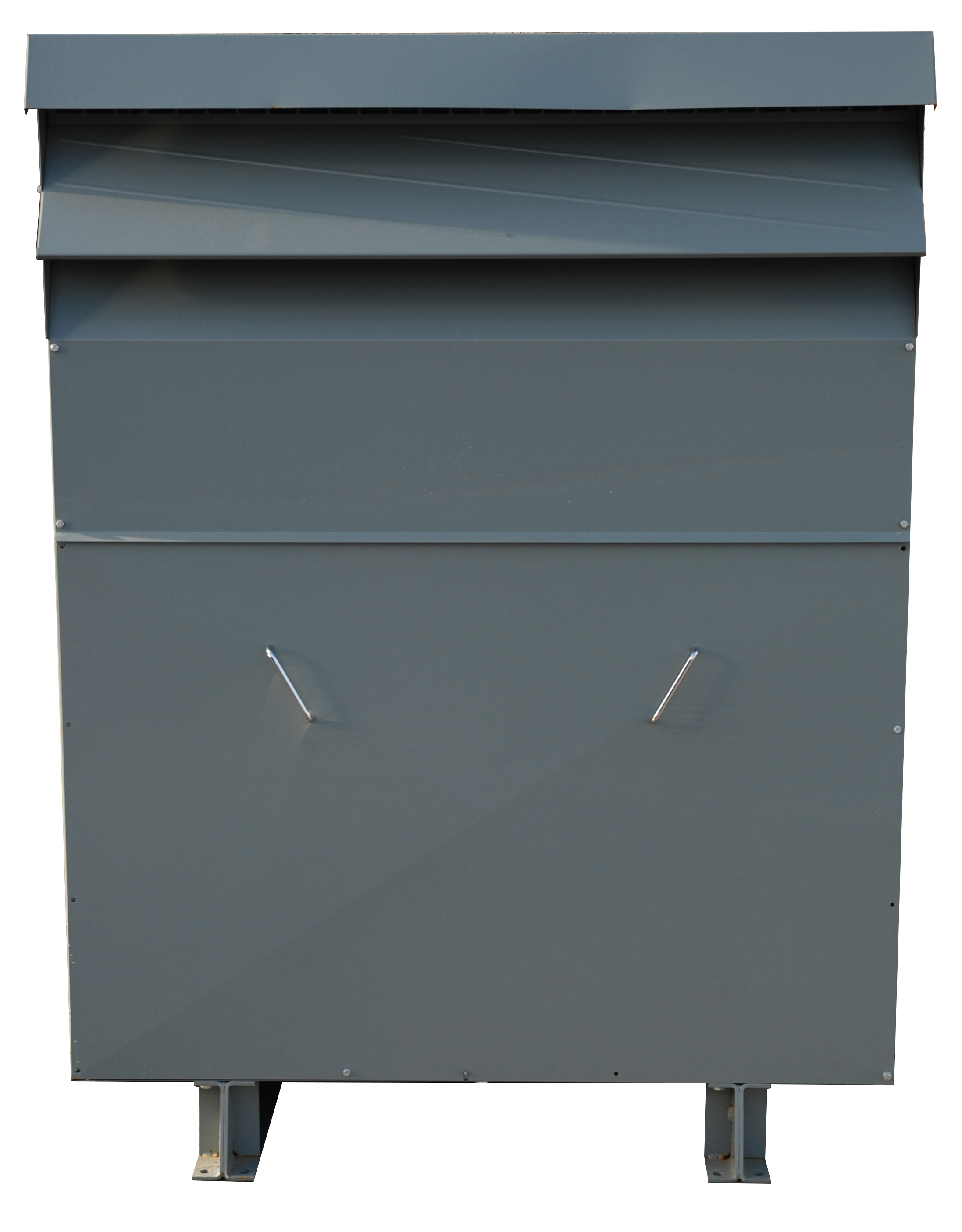

HPS General Efficient 1000 kVA with 600 - (3PH 600D, 600Y/347) Primary and and 208 - (3PH 208D or 208Y/120) Secondary Voltage Phase - Type current designs .

$32,400.00

Min: 1  Mult: 1

Product Attributes

Availability Note

This item is Build to Order and requires production time of 2-4 weeks Min.

UPC

803423128241

UNSPSC

39121001

TYPE

General

Generation

current designs

Phase (Pri-Sec)

3PH Delta-Wye-N

kVA

1000

Primary Voltage

600 - (3PH 600D, 600Y/347)

Secondary Voltage

208 - (3PH 208D or 208Y/120)

K Rating

N/A

Winding Material/Electrostatic Shield

N/A

Temperature Rise at standard 220°C Insul Class

N/A

Enclosure

N/A

Sound Level

N/A

Special Duty

Default

BIL Rating

10 kV

Enclosure Finish

ANSI 61 Grey, UL50

Frequency

60 Hz (optional 50/60 Hz available)

Impedance

Typically 1.8% to 7.5%

UL Listed

File: E112313
