Product Attributes

Lead Length

1.5” +- 0.13

Maximum DC Current (ma)

400

Inductance L

100 uH

Maximum DC Resistor (Ohms)

3

Operating Temperature

-40C to +105C

Q Minimum

107

Self Resonant Min Freq(MHz)

12

Feature

impregnated with a moisture and fungus resistant varnish

Core Material

Iron

Core Length

0.88

Coil Type

Single

Test Frequency)

0.79 MHz

Coil Diameter

0.29

L Tolerance

0.05

Series Photo

Click Here

CAD File

Click Here

Manufacturers Series Page

Click Here

Inductance Tolerance

+/- 10%

Coil Diameter Max.

0.29

Test Frequency Mhz

0.79 MHz

Eccn

EAR99

Self Resonant Min. Frequency

12

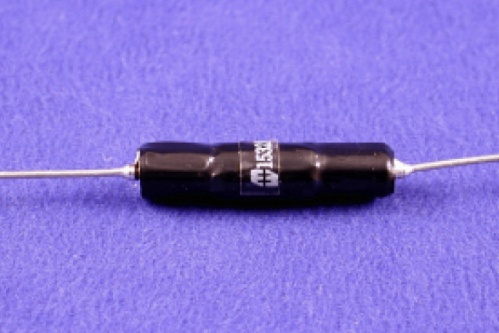

Hammond Product Photo

Click Here

Q Min.

107

Pricing Note

Price change ~5.0% on 10/01/22

Inductance L (Uh)

100 uH

Max. D.C. Current (Ma.)

400

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1531-1535

Lead-Time Weeks

3

UPC

623980294209

Standard Stock

Yes
