166L16

Hammond Mfg. | 166 | Power chassis Mount
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant

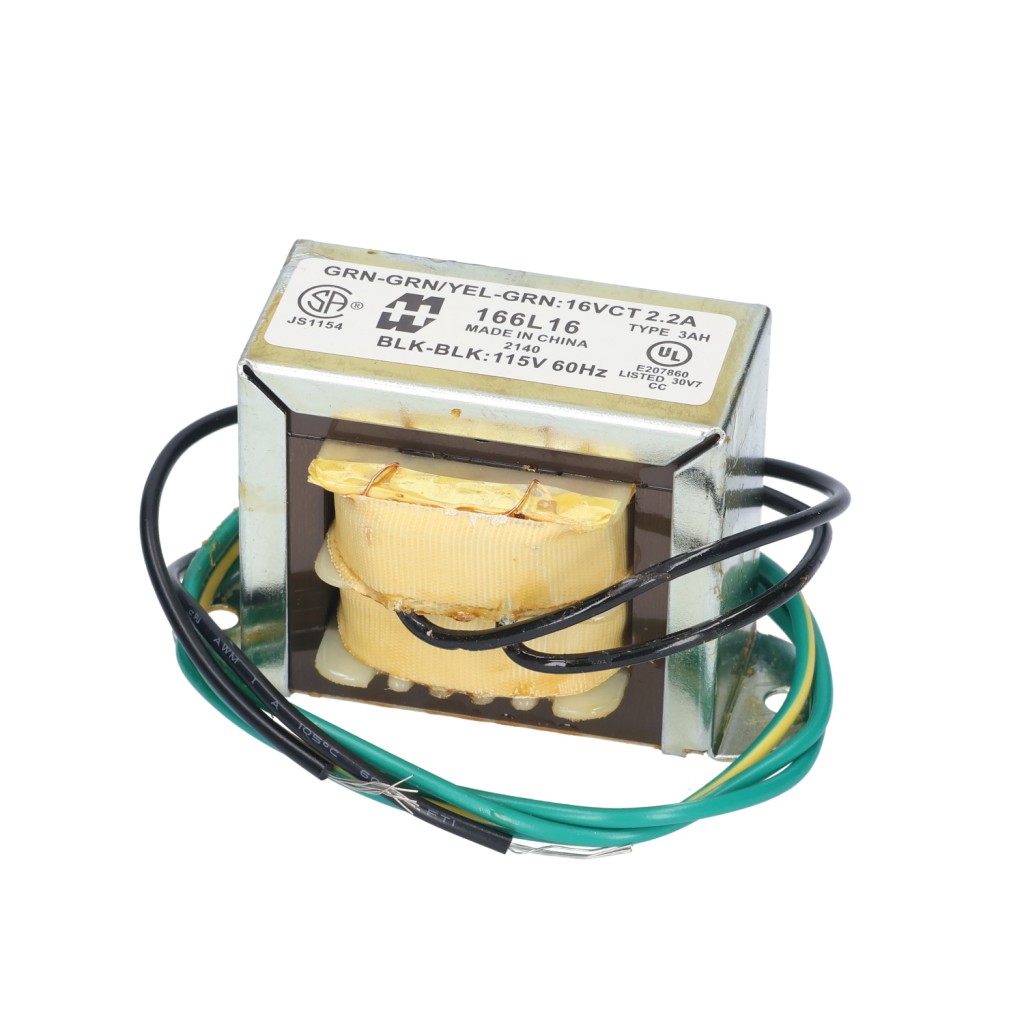

Hammond Low Voltage 115V 35.2VA Chassis Mount Open Frame Power Transformer with Secondary of [16 C.T. VAC ÷ 2.2 Amp]. Tranfomer is 3.25 Wide by 2.00 depth by 2.00 Tall (Inches). RoHs, UL & CSA

$20.90

Min: 1  Mult: 1

Product Attributes

Width

3.25

Primary Voltage

115V 60 Hz.

Length

2.00

Secondary Amps

2.2

Lead Length

6 Inch Min

Hi-Pot Test

2,000V RMS

Height

2.00

Secondary Voltage

16 C.T.

Style

Open Frame Chassis Mount

UL

Listed

VA RATING

35.2

CSA

Certified

Mounting Hole Centers Width

2.81

Series Photo

Click Here

CAD File

Click Here

Manufacturers Series Page

Click Here

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Power Rating (Va)

35.2

Secondary (Rms) Vac

16 C.T.

Secondary (Rms) Amps

2.2

Primary Vac

115V 60 Hz.

Hammond Series

166

Hammond Product Group

transformers

Hammond Product Type

transformer

Lead-Time Weeks

3

UPC

623980228402

Standard Stock

Yes
