166E12

Hammond Mfg. | 166 | Power chassis Mount
green-check-icon Total Stock: 39
yellow-timer-icon Factory Lead Time: 28
onlycheckmark RoHs Compliant

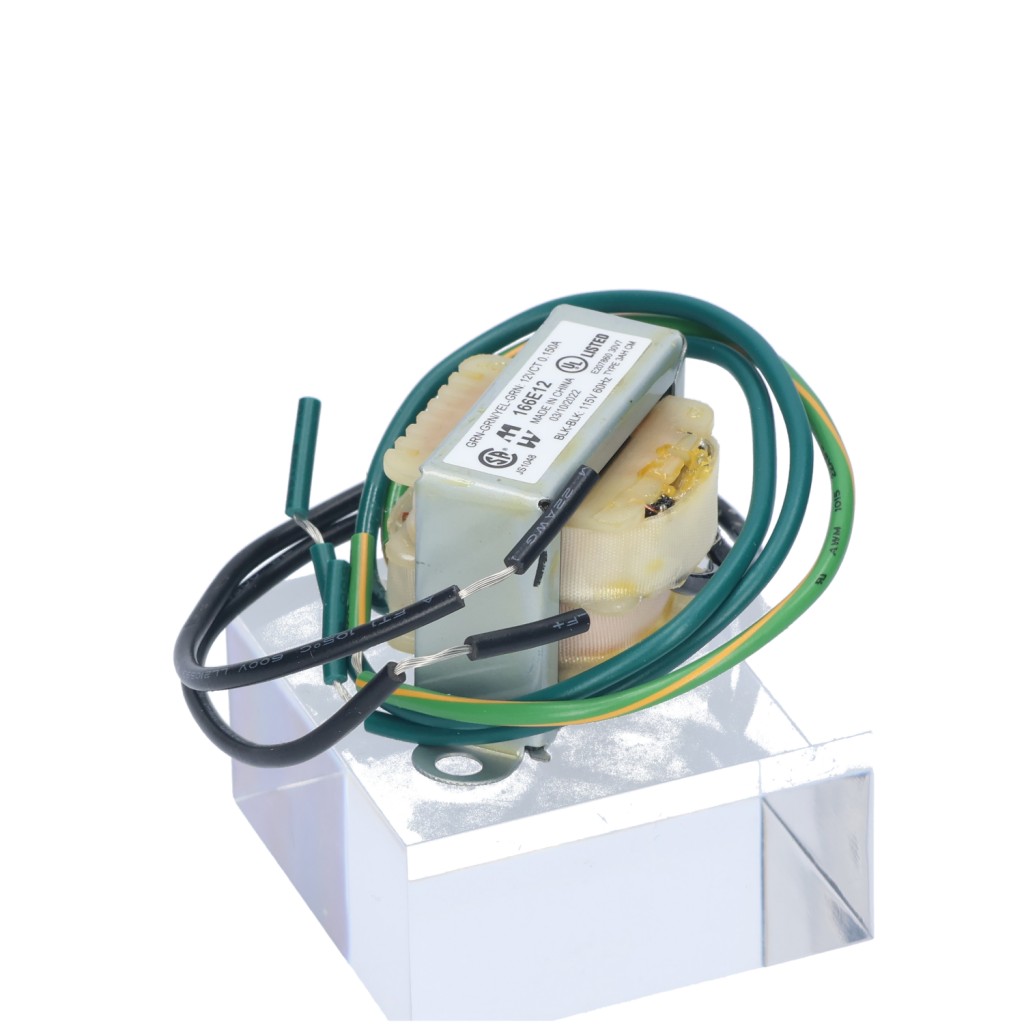

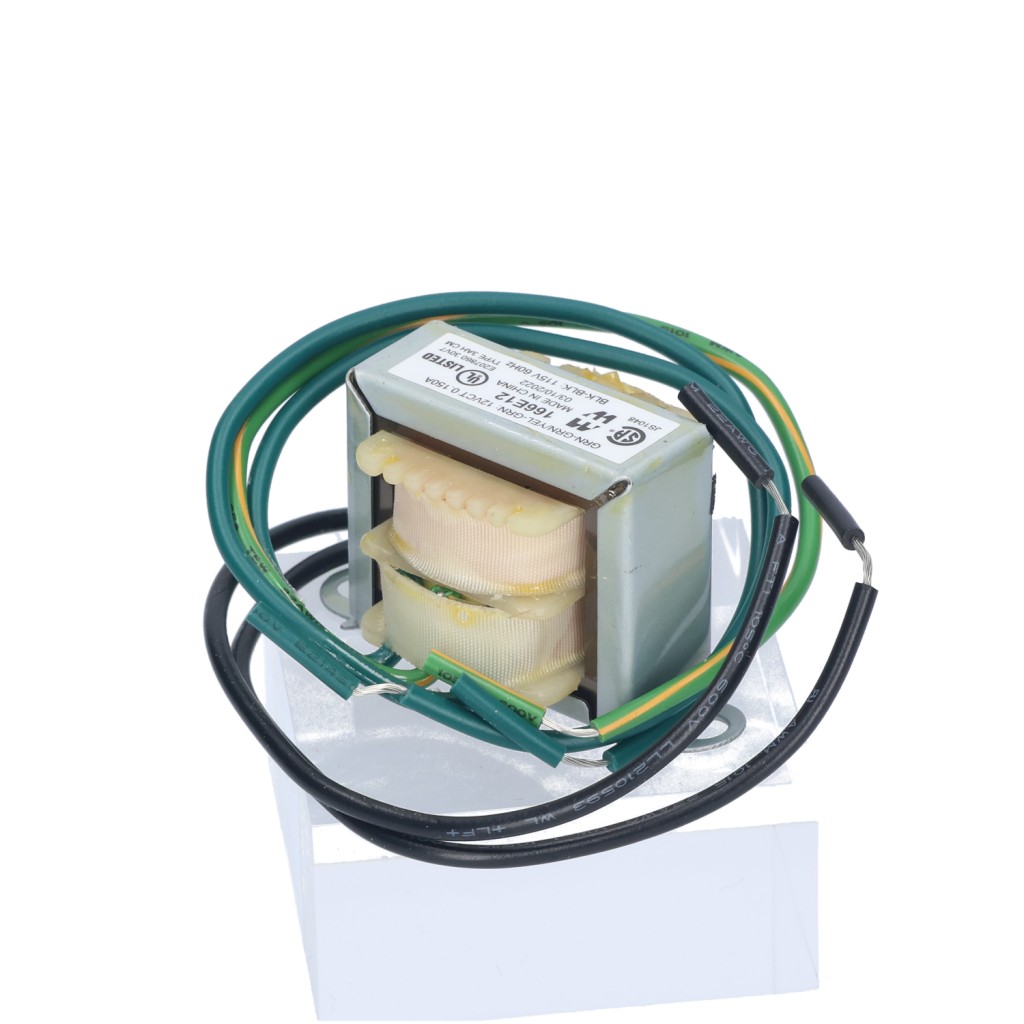

Hammond Low Voltage 115V 1.8VA Chassis Mount Open Frame Power Transformer with Secondary of [12 C.T. VAC ÷ 0.15 Amp]. Tranfomer is 2.06 Wide by 1.38 depth by 1.19 Tall (Inches). RoHs, UL & CSA

$10.50

Min: 1  Mult: 1

Product Attributes

Width

2.06

VA RATING

1.8

UL

Listed

Style

Open Frame Chassis Mount

Secondary Voltage

12 C.T.

Secondary Amps

0.15

Primary Voltage

115V 60 Hz.

Mounting Hole Centers Width

1.75

Length

1.38

Lead Length

6 Inch Min

CSA

Certified

Hi-Pot Test

2,000V RMS

Height

1.19

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

166

UPC

62398022235

Series Photo

Click Here

Hammond Product Photo

Click Here

Manufacturers Series Page

Click Here

CAD File

Click Here

Not available at this time.
