1182S15

Hammond Mfg. | 1182 | Power chassis Mount
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 300 VA, with 15V @ 20A secondary, 1182 Series TOROID, 300VA, 50/60HZ, 15/15V Hammond PN 1182S15 : UPC [623980531748]

$83.90

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

300

Secondary VAC Parallel

15V @ 20A

Secondary VAC Series

30V C.T. @ 10A

Secondary

Dual

Outside Diameter

4.88

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

1.85

Height

1.88

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

2.7

Secondary (Rms) Series

30V C.T. @ 10A

Secondary (Rms) Parallel

15V @ 20A

% Voltage Regulation

5

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

6

Hardware

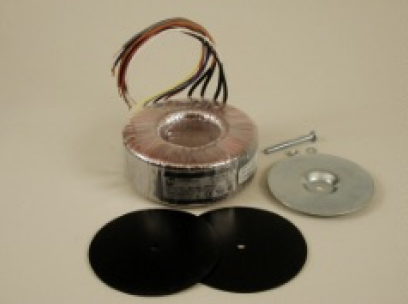

1/4-20 x 2.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

300

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531748

Standard Stock

Yes
