1182Q117

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182

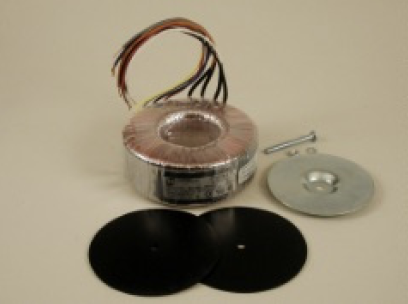

Power transformer, toroid, 750 VA, with 117V @ 6.42A secondary, 1182 Series TOROID, 750VA,50/60HZ,117/117V Hammond PN 1182Q117 : UPC [623980531960]

$134.20

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

750

Secondary VAC Parallel

117V @ 6.42A

Secondary VAC Series

234V C.T. @ 3.21A

Secondary

Dual

Outside Diameter

5.88

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

2.45

Height

2.88

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

5.8

Secondary (Rms) Series

234V C.T. @ 3.21A

Secondary (Rms) Parallel

117V @ 6.42A

% Voltage Regulation

4

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

12.9

Hardware

3/8-16 x 3.50" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

750

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531960

Standard Stock

Yes
