1182N117

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 500 VA, with 117V @ 4.28A secondary, 1182 Series TOROID,500VA, 50/60HZ,117/117V Hammond PN 1182N117 : UPC [623980531847]

$109.10

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

500

Secondary VAC Parallel

117V @ 4.28A

Secondary VAC Series

234V C.T. @ 2.14A

Secondary

Dual

Outside Diameter

5.50

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

2.30

Height

2.25

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

4.1

Secondary (Rms) Series

234V C.T. @ 2.14A

Secondary (Rms) Parallel

117V @ 4.28A

% Voltage Regulation

5

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

9

Hardware

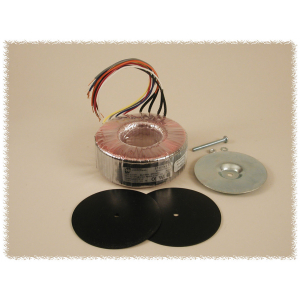

1/4-20 x 3.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

500

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531847

Standard Stock

Yes
