1182M22

Hammond Mfg. | 1182 | Power chassis Mount
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 120 VA, with 22V @ 5.46A secondary, 1182 Series TOROID, 120VA, 50/60HZ, 22/22V Hammond PN 1182M22 : UPC [623980531526]

$59.70

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

120

Secondary VAC Parallel

22V @ 5.46A

Secondary VAC Series

44V C.T. @ 2.73A

Secondary

Dual

Outside Diameter

3.75

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

1.45

Height

1.63

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

1.3

Secondary (Rms) Series

44V C.T. @ 2.73A

Secondary (Rms) Parallel

22V @ 5.46A

% Voltage Regulation

8

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

3

Hardware

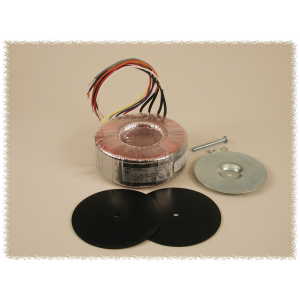

10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

120

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531526

Standard Stock

Yes
