1182K15

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 50 VA, with 15V @ 3.34A secondary, 1182 Series TOROID, 50VA, 50/60HZ, 15/15V Hammond PN 1182K15 : UPC [623980531328]

$52.90

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

50

Secondary VAC Parallel

15V @ 3.34A

Secondary VAC Series

30V C.T. @ 1.67A

Secondary

Dual

Outside Diameter

3.25

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

1.25

Height

1.50

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

0.7

Secondary (Rms) Series

30V C.T. @ 1.67A

Secondary (Rms) Parallel

15V @ 3.34A

% Voltage Regulation

13

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

1.5

Hardware

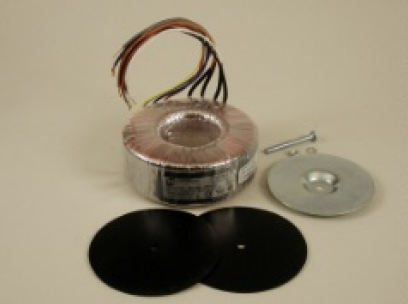

10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

50

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531328

Standard Stock

Yes
