1182H117

Hammond Mfg. | 1182 | Power chassis Mount
green-check-icon Total Stock: 75
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 80 VA, with 117V @ 684ma secondary, 1182 Series TOROID, 80VA, 50/60HZ,117/117V Hammond PN 1182H117 : UPC [623980531465]

$55.50

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

80

Secondary VAC Parallel

117V @ 684ma

Secondary VAC Series

234V C.T. @ 342ma

Secondary

Dual

Outside Diameter

3.50

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

1.60

Height

1.50

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

1

Secondary (Rms) Series

234V C.T. @ 342ma

Secondary (Rms) Parallel

117V @ 684ma

% Voltage Regulation

10

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

2.1

Hardware

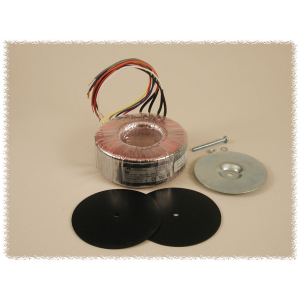

10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

80

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531465

Standard Stock

Yes
