1182G22

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1182
Power transformer, toroid, 30 VA, with 22V @ 1.36A secondary, 1182 Series TOROID, 30VA, 50/60HZ, 22/22V Hammond PN 1182G22 : UPC [623980531250]

$48.60

Min: 1  Mult: 1

Product Attributes

Series Photo

Click Here

CAD File

Click Here

VA

30

Secondary VAC Parallel

22V @ 1.36A

Secondary VAC Series

44V C.T. @ 0.68A

Secondary

Dual

Outside Diameter

3.00

ROHS

Yes

Manufacturers Series Page

Click Here

Inside Diameter

1.50

Height

1.25

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

Weight(Kg)

0.5

Secondary (Rms) Series

44V C.T. @ 0.68A

Secondary (Rms) Parallel

22V @ 1.36A

% Voltage Regulation

13

Pricing Note

Price change ~5.0% on 10/01/22

Eccn

EAR99

Hammond Product Photo

Click Here

Weight(lbs)

1.1

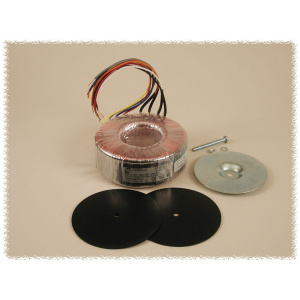

Hardware

10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Power Rating (Va)

30

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

1182

Lead-Time Weeks

4

UPC

623980531250

Standard Stock

Yes
