filter--iconPrice List

1182E240

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 28
onlycheckmark RoHs Compliant
1182

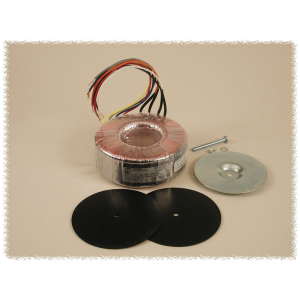

Hammond Power transformer, toroid, 50 VA, with 240V @ 208ma secondary, 1182 Series Part Number 1182E240 [UPC 62398053137 ]

$52.90

Min: 1  Mult: 1

Product Attributes

VA

50

% Voltage Regulation

13.10%

Secondary

Single

Secondary VAC Parallel

240V @ 208ma

Outside Diameter

3.25

Inside Diameter

1.25

Height

1.50

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

ROHS

Yes

Weight(Kg)

0.7

Pricing Note

Price change ~5.0% on 10/01/22

Potted Center

No

Weight(lbs)

1.5

Hardware

10-24 x 2.00" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Hammond Series

1182

Hammond Product Group

transformers

Hammond Product Type

transformer

UPC

62398053137

Series Photo

Click Here

Manufacturers Series Page

Click Here

Hammond Product Photo

Click Here

CAD File

Click Here

Not available at this time.
