filter--iconPrice List

1182E117

Hammond Mfg. | 1182 | Power chassis Mount
yellow-timer-icon Factory Lead Time: 28
onlycheckmark RoHs Compliant
1182

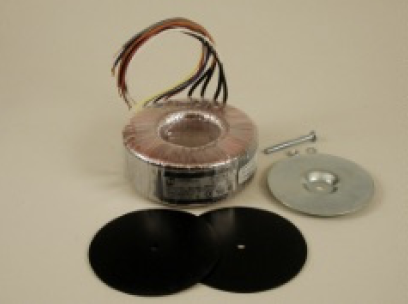

Hammond 30 VA torodial transformer with 234V C.T. @ 128ma Secondary VAC Series / 117V @ 256ma VAC Parallel & 12.40% Voltage Regulation

$48.60

Min: 1  Mult: 1

Product Attributes

VA

30

% Voltage Regulation

12.40%

Secondary

Dual

Secondary VAC Parallel

117V @ 256ma

Secondary VAC Series

234V C.T. @ 128ma

Outside Diameter

3.00

Inside Diameter

1.50

Height

1.25

Torid Center

Open

UL file

#E207860

UL Recognized

UL506 (XPTQ2.Guide)

CSA file

#209651

CSA certified

to C22.2 #66

ROHS

Yes

Weight(Kg)

0.5

Pricing Note

Price change ~5.0% on 10/01/22

Weight(lbs)

1.1

Hardware

10-24 x 1.75" bolt, with metal centering washer, nut, lockwasher & two (2) rubber insulating pads

Potted Center

No

Hammond Series

1182

Hammond Product Group

transformers

Hammond Product Type

transformer

UPC

62398053127

Manufacturers Series Page

Click Here

Series Photo

Click Here

Hammond Product Photo

Click Here

CAD File

Click Here

Not available at this time.
