164H16

Hammond Mfg. | 162-164 | PC Mount
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
Transformer, low voltage PCB mount, low profile, 115V, 20VA, 16V C.T. @ 1.25A POWER TX 20VA 115V 50/60HZ Hammond PN 164H16 : UPC [623980260181]

$14.60

Min: 1  Mult: 1

Product Attributes

Winding

Dual winding secondaries, non-concentrically wound

Width

1.88”

Weight (Lbs)

0.8

VA Size

20

UL Recognized

Yes

Primary

115V Single

Mounting Screws

#4

Length

2.25”

Insulation

Class B Insulation - 130 C

Height

1.44”

Current

50/60 Hz

Design

Low Profile, Split bobbin

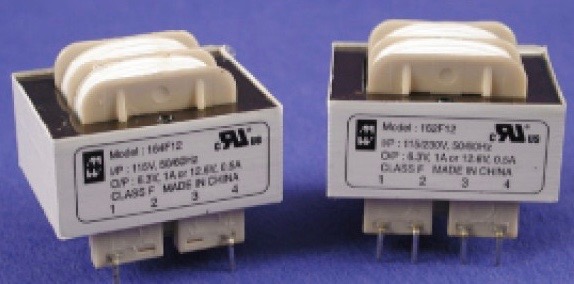

Series Photo

Click Here

CAD File

Click Here

Manufacturers Series Page

Click Here

Power Rating (Va)

20

Eccn

EAR99

Secondary (RMS) Series

16V C.T. @ 1.25A

Secondary (RMS) Parallel

8V @ 2.5A

Hammond Product Photo

Click Here

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

162-164

UPC

623980260181

Lead-Time Weeks

3

Standard Stock

Yes
