164G16

Hammond Mfg. | 162-164 | PC Mount
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
Transformer, low voltage PCB mount, low profile, 115V, 12VA, 16V C.T. @ .8A POWER TX 12VA 115V 50/60HZ Hammond PN 164G16 : UPC [623980260174]

$10.00

Min: 1  Mult: 1

Product Attributes

Current

50/60 Hz

Width

1.56”

Weight (Lbs)

0.7

VA Size

12

UL Recognized

Yes

Primary

115V Single

Winding

Dual winding secondaries, non-concentrically wound

Mounting Screws

#4

Length

1.88”

Insulation

Class B Insulation - 130 C

Height

1.50”

Design

Low Profile, Split bobbin

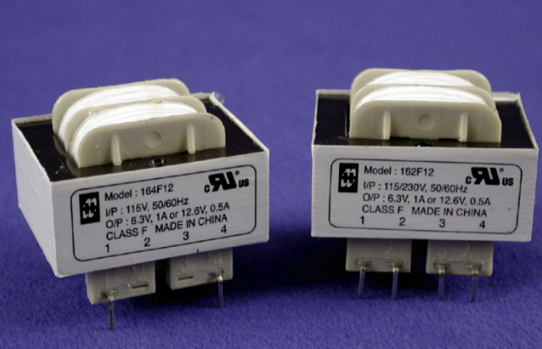

Series Photo

Click Here

Manufacturers Series Page

Click Here

Power Rating (Va)

12

Eccn

EAR99

Hammond Product Photo

Click Here

Secondary (RMS) Series

16V C.T. @ .8A

Secondary (RMS) Parallel

8V @ 1.6A

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

162-164

UPC

623980260174

Lead-Time Weeks

4

Standard Stock

Yes
