filter--iconPrice List

164D12

Hammond Mfg. | 162-164 | PC Mount
green-check-icon Total Stock: 1
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant

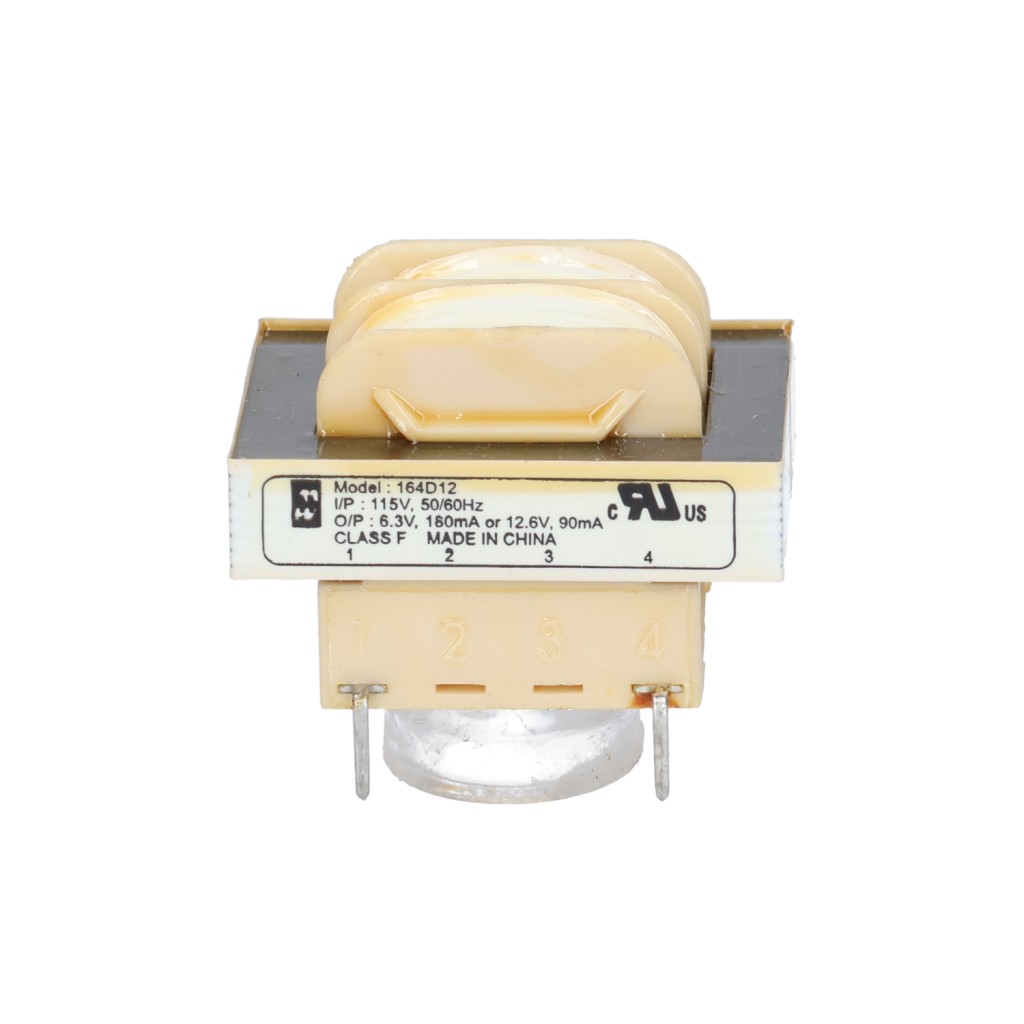

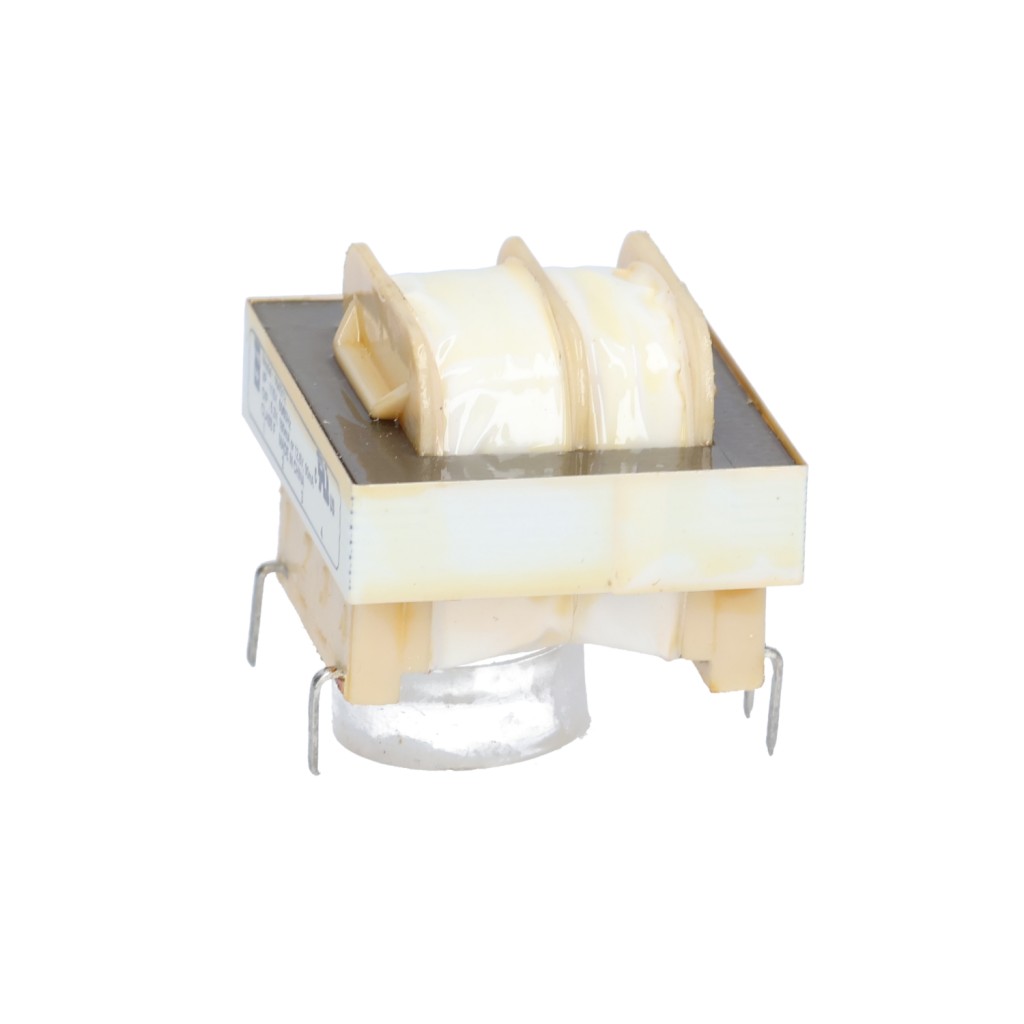

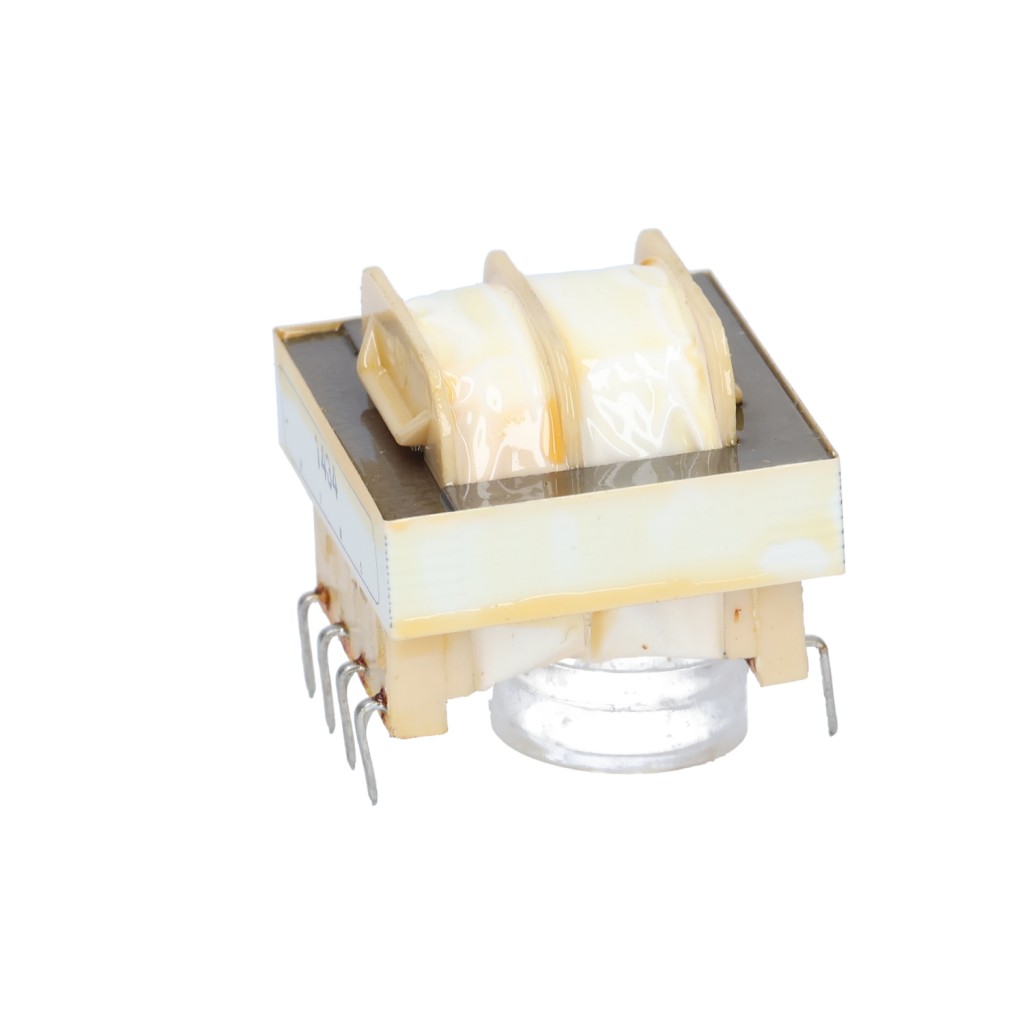

Transformer, low voltage PCB mount, low profile, 115V, 1.1VA, 12.6V C.T. @ .09A POWER TX 1.1VA 115V 50/60HZ Hammond PN 164D12 : UPC [623980260075]

$7.80

Min: 1  Mult: 1

Product Attributes

Current

50/60 Hz

Width

1.13”

Weight (Lbs)

0.17

VA Size

1.1

UL Recognized

Yes

Primary

115V Single

Winding

Dual winding secondaries, non-concentrically wound

Mounting Screws

N/A

Length

1.38”

Insulation

Class B Insulation - 130 C

Height

0.9375”

Design

Low Profile, Split bobbin

Series Photo

Click Here

Manufacturers Series Page

Click Here

Power Rating (Va)

1.1

Eccn

EAR99

Hammond Product Photo

Click Here

Secondary (RMS) Series

12.6V C.T. @ .09A

Secondary (RMS) Parallel

6.3V @ .18A

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

162-164

UPC

623980260075

Lead-Time Weeks

3

Standard Stock

Yes
