162J12

Hammond Mfg. | 162-164 | PC Mount
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant

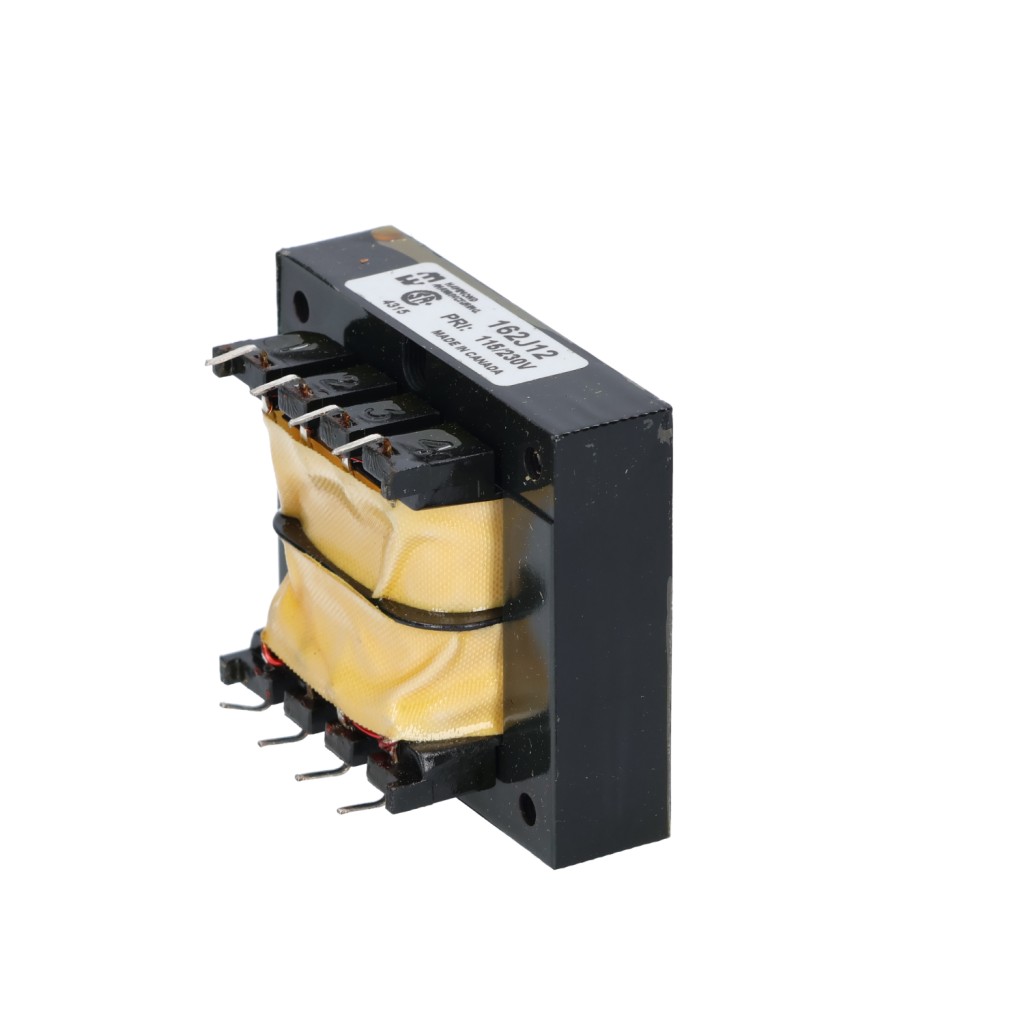

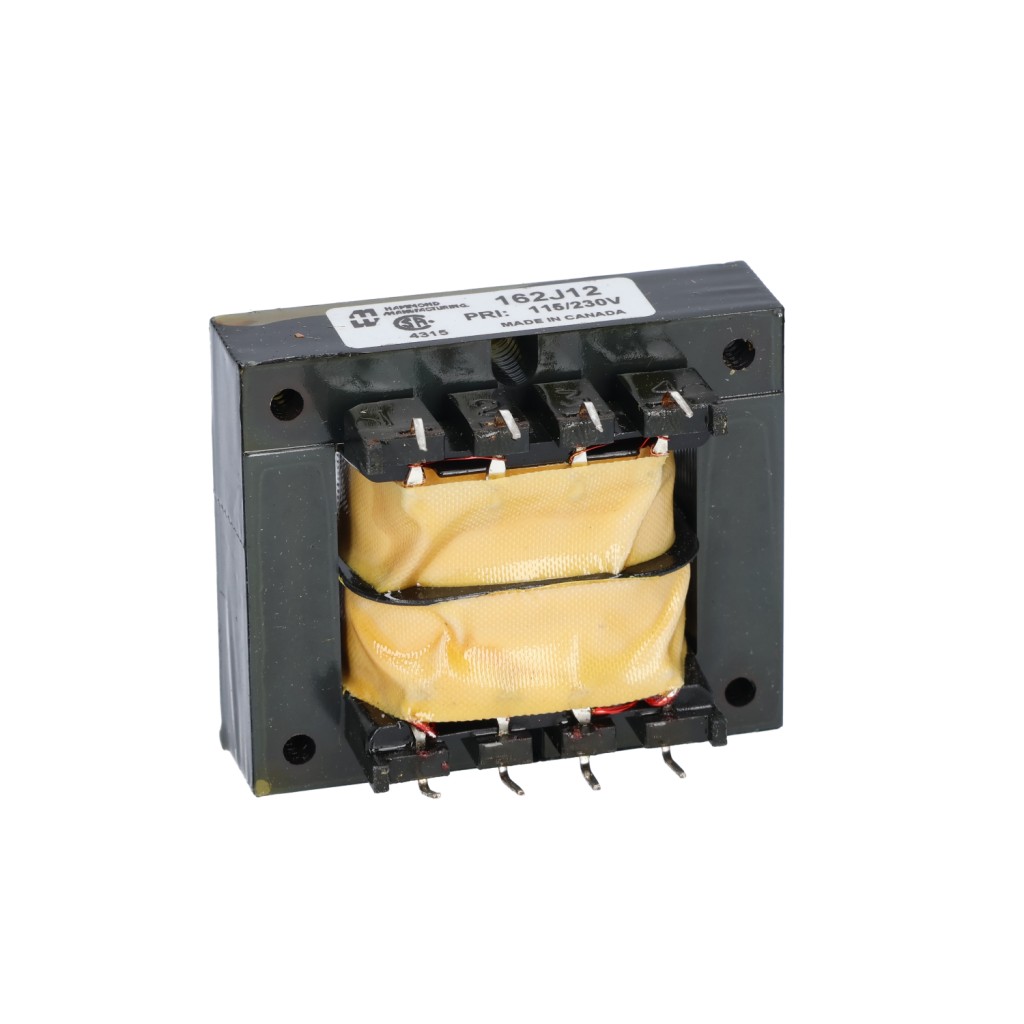

Transformer, low voltage PCB mount, low profile, 115/230V, 36VA, 12.6V C.T. @ 2.85A POWER TX 36VA 115/230 Hammond PN 162J12 : UPC [623980260792]

$19.20

Min: 1  Mult: 1

Product Attributes

Current

50/60 Hz

Width

2.19”

Weight (Lbs)

1.1

VA Size

36

UL Recognized

Yes

Primary

115/230V Dual

Winding

Dual winding secondaries, non-concentrically wound

Mounting Screws

#6

Length

2.63”

Insulation

Class B Insulation - 130 C

Height

1.56”

Design

Low Profile, Split bobbin

Series Photo

Click Here

Manufacturers Series Page

Click Here

Power Rating (Va)

36

Eccn

EAR99

Hammond Product Photo

Click Here

Secondary (RMS) Series

12.6V C.T. @ 2.85A

Secondary (RMS) Parallel

6.3V @ 5.7A

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

162-164

UPC

623980260792

Lead-Time Weeks

4

Standard Stock

Yes
