162E20

Hammond Mfg. | 162 | PC Mount
green-check-icon Total Stock: 2
yellow-timer-icon Factory Lead Time: 28
onlycheckmark RoHs Compliant
162
Hammond Transformer, low voltage PCB mount, low profile, 115/230V, 2.4VA, 20V C.T. @ .12A Part Number 162E20 [UPC 62398026088 ]

$10.00

Min: 1  Mult: 1

Product Attributes

Current

50/60 Hz

Winding

Dual winding secondaries, non-concentrically wound

Primary

115/230V Dual

Secondary (RMS) Parallel

10V @ .24A

Secondary (RMS) Series

20V C.T. @ .12A

UL Recognized

Yes

VA Size

2.4

Weight (Lbs)

0.25

Width

1.13”

Mounting Screws

N/A

Length

1.38”

Insulation

Class B Insulation - 130 C

Height

1.19”

Design

Low Profile, Split bobbin

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

162-164

UPC

62398026088

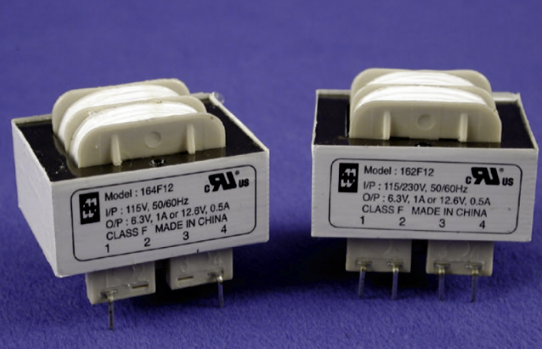

Hammond Product Photo

Click Here

Series Photo

Click Here

Manufacturers Series Page

Click Here
