162D24

Hammond Mfg. | 162-164 | PC Mount
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
Transformer, low voltage PCB mount, low profile, 115/230V, 1.1VA, 24V C.T. @ .045A POWER TX 1.1VA 115/230 Hammond PN 162D24 : UPC [623980260945]

$7.60

Min: 1  Mult: 1

Product Attributes

Winding

Dual winding secondaries, non-concentrically wound

Width

1.13”

Weight (Lbs)

0.17

VA Size

1.1

UL Recognized

Yes

Primary

115/230V Dual

Mounting Screws

N/A

Length

1.38”

Insulation

Class B Insulation - 130 C

Height

0.9375”

Current

50/60 Hz

Design

Low Profile, Split bobbin

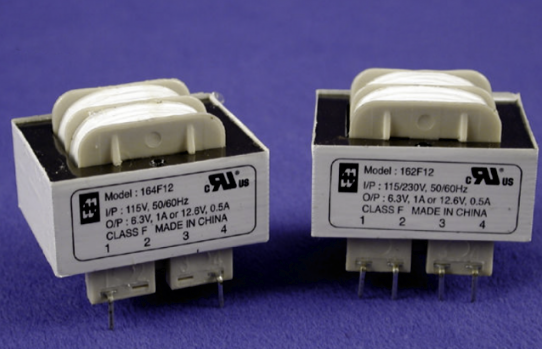

Series Photo

Click Here

CAD File

Click Here

Manufacturers Series Page

Click Here

Power Rating (Va)

1.1

Eccn

EAR99

Secondary (RMS) Series

24V C.T. @ .045A

Secondary (RMS) Parallel

12V @ .09A

Hammond Product Photo

Click Here

Pricing Note

Price change ~5.0% on 10/01/22

Hammond Product Type

transformer

Hammond Product Group

transformers

Hammond Series

162-164

UPC

623980260945

Lead-Time Weeks

3

Standard Stock

Yes

Not available at this time.
