1642SE

Hammond Mfg. | 1627-1642 | Audio Transformers
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1627-1642

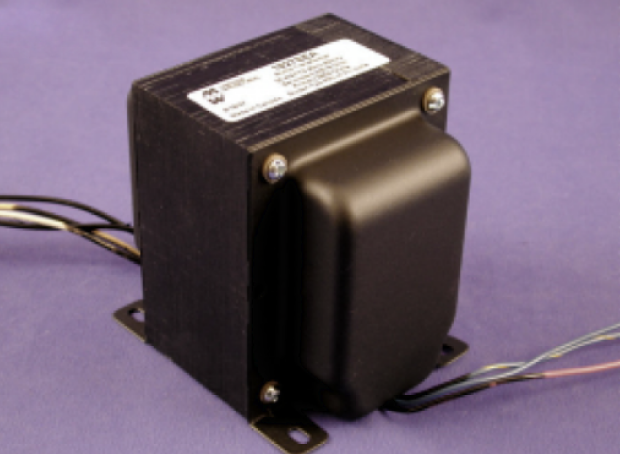

Hammond 75 Watt, 5000 Ohm Tranformer, Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

$338.20

Min: 1  Mult: 1

Product Attributes

Suggested Pentodes Tubes

-

Feature-1

Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

CAD File

Click Here

Overall Dims

4.38 x 7.50 x 5.25

Series Photo

Click Here

Width

4.38

Length

7.50

Height

5.25

Design

Enclosed (shielded)

Mounting

four slot, chassis Type X

Manufacturers Series Page

Click Here

Primary Max DC Bias

300 ma.

Secondary Impedance Ohms

4-8-16

Ultra-Linar 40% Primary Tap

No

Leads

8 Inch Min

Inductance

53 Henrys

Impedance Ohms

5000

Inductance (H)

53 Henrys

Core

gapped to reduce core saturation

Ultra Linear 40% Primary Tap

No

Suggested Tubes Triodes

Parallel - 211, 572, 811A, 845

Eccn

EAR99

Hammond Product Photo

Click Here

Primary Max. Dc Bias (Ma)

300 ma.

AUDIO WATTS

75

Pricing Note

Price change ~5.0% on 10/01/22

Impedance (Ohms)

5000

HiPot Test (VRMS)

3500

Suggested Triodes Tubes

Parallel - 211, 572, 811A, 845

Hammond Series

1627-1642

Hammond Product Group

transformers

Hammond Product Type

transformer

Lead-Time Weeks

4

UPC

623980208206

Standard Stock

Yes
