1630SEA

Hammond Mfg. | 1627-1642 | Audio Transformers
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
1627-1642

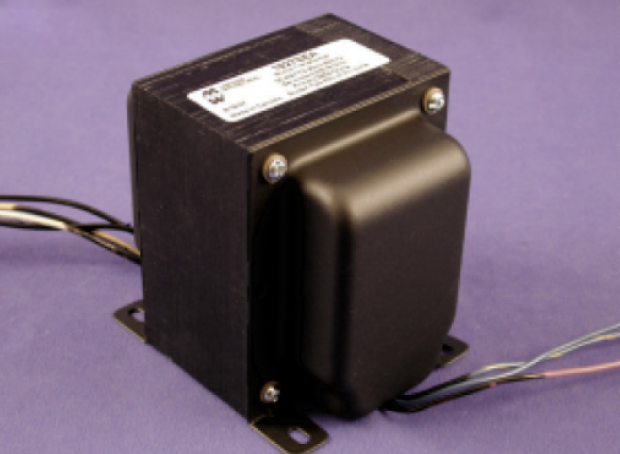

Hammond 30 Watt, 3500 Ohm Tranformer, Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

$170.20

Min: 1  Mult: 1

Product Attributes

Suggested Pentodes Tubes

6CA7, 6L6, 807, 5881, 6550, Parallel - 6AQ5, 6V6, EL84

Feature-1

Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

CAD File

Click Here

Overall Dims

3.75 x 4.98 x 4.65

Series Photo

Click Here

Width

3.75

Length

4.98

Height

4.65

Design

Enclosed (shielded)

Mounting

four slot, chassis Type X

Manufacturers Series Page

Click Here

Primary Max DC Bias

135 ma.

Secondary Impedance Ohms

4-8-16

Ultra-Linar 40% Primary Tap

Yes

Leads

8 Inch Min

Inductance

42 Henrys

Impedance Ohms

3500

Inductance (H)

42 Henrys

Core

gapped to reduce core saturation

Ultra Linear 40% Primary Tap

Yes

Suggested Tubes Triodes

2A3, 6A3, 6B4G, 300B

Eccn

EAR99

Hammond Product Photo

Click Here

Primary Max. Dc Bias (Ma)

135 ma.

AUDIO WATTS

30

Pricing Note

Price change ~5.0% on 10/01/22

Impedance (Ohms)

3500

HiPot Test (VRMS)

2000

Suggested Triodes Tubes

2A3, 6A3, 6B4G, 300B

Hammond Series

1627-1642

Hammond Product Group

transformers

Hammond Product Type

transformer

Lead-Time Weeks

3

UPC

623980008301

Standard Stock

Yes
