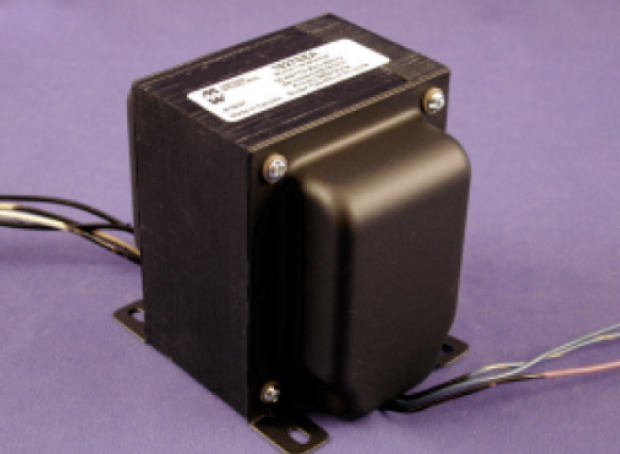

1626SEA

Hammond Mfg. | 1627-1642 | Audio Transformers
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
1627-1642
Hammond 25 Watt, 600 Ohm Tranformer, Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

$141.60

Min: 1  Mult: 1

Product Attributes

Suggested Pentodes Tubes

-

Feature-1

Over designed for high fidelity, single ended, Class-A, tube output circuits (triode, tetrode or pentode tubes)

CAD File

Click Here

Overall Dims

3.75 x 4.44 x 4.56

Series Photo

Click Here

Width

3.75

Length

4.44

Height

4.56

Design

Enclosed (shielded)

Mounting

four slot, chassis Type X

Manufacturers Series Page

Click Here

Primary Max DC Bias

200 ma.

Secondary Impedance Ohms

4-8-16

Ultra-Linar 40% Primary Tap

Yes

Leads

8 Inch Min

Inductance

2.9 Henrys

Impedance Ohms

600

Inductance (H)

2.9 Henrys

Core

gapped to reduce core saturation

Ultra Linear 40% Primary Tap

Yes

Suggested Tubes Triodes

6C33

Eccn

EAR99

Hammond Product Photo

Click Here

Primary Max. Dc Bias (Ma)

250 ma.

AUDIO WATTS

25

Pricing Note

Price change ~5.0% on 10/01/22

Impedance (Ohms)

600

HiPot Test (VRMS)

2000

Suggested Triodes Tubes

6C33

Hammond Series

1627-1642

Hammond Product Group

transformers

Hammond Product Type

transformer

Lead-Time Weeks

4

UPC

623980240558

Standard Stock

Yes
