PJU201610F

Hammond Mfg. | PJUF | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant

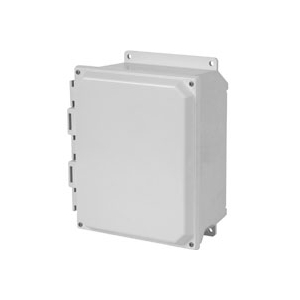

N4X Solid Door Screw Cover w/flange - 20 x 16 x 10 - Fiberglass NONMET LIFT OFF FLAN (20.5 x 16.27 x 10.13) Hammond PN PJU201610F : UPC [623980020822]

$412.70

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

CAD File

Click Here

CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

20.50 x 16.27 x 10.13

Optional Inner Panel

P2068

Length

20.50

Height

10.13

Width

16.27

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled.

Operating Temperature

-40C to +130C

Manufacturers Series Page

Click Here

Gasket

Captive oil resistant gasket provides a positive seal

Eccn

EAR99

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Pricing Note

Price change ~15.0% on 10/01/22

Panel Width

14.44

Panel Length

18.44

Cover

Solid - Lift-Off

Overall Dims

(20.5 x 16.27 x 10.13)

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

Mounting

Flange

Hammond Product Photo

Click Here

IEC

60529, IP66

Cover Length

20.50

Cover Width

16.72

Hammond Series

PJUF

Hammond Product Group

electrical

Hammond Product Type

enclosure

Lead-Time Weeks

2

UPC

623980020822

Series-Description

Type 4X Polyester Junction Box Lift-Off Cover with Screws

Standard Stock

Yes

Weight LBs

17
