PJU16148LF

Hammond Mfg. | PJU | JunctionBox-NonMetal
green-check-icon Total Stock: 3
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant

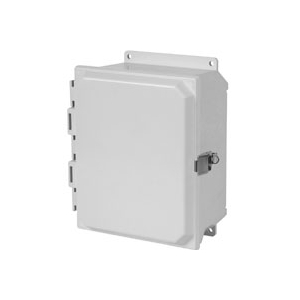

N4X Solid Door Snap Latch w/flange - 16 x 14 x 8 - Fiberglass NONMET HNG SNAP L FLANGE (16.05 x 14.27 x 8.13) Hammond PN PJU16148LF : UPC [623980020679]

$213.20

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

CAD File

Click Here

CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

16.05 x 14.27 x 8.13

Optional Inner Panel

14R1513

Width

14.27

Length

16.05

Height

8.13

Manufacturers Series Page

Click Here

Gasket

Captive oil resistant gasket provides a positive seal

Operating Temperature

-40C to +130C

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Pricing Note

Price change ~15.0% on 10/01/22

Panel Width

12.88

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Cover

Solid

Overall Dims

(16.05 x 14.27 x 8.13)

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

Panel Length

14.75

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

Hammond Product Photo

Click Here

IEC

60529, IP66

Eccn

EAR99

Mounting

Flange

Hammond Series

PJU

Hammond Product Group

electrical

Hammond Product Type

enclosure

UPC

623980020679

Lead-Time Weeks

2

Series-Description

Type 4X Polyester Junction Box with Continuous Hinge Door with Snap Latches

Weight LBs

11

Standard Stock

Yes
