PJU16148CCH

Hammond Mfg. | PJUHF | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant

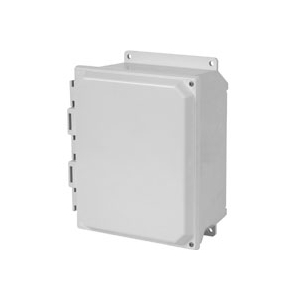

N4X Clear Door Hinge Cover w/feet - 16 x 14 x 8 - Fiberglass NONMET HNG SC CVR FEET (16.05 x 14.27 x 8.13) Hammond PN PJU16148CCH : UPC [623980021768]

$202.20

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

CAD File

Click Here

CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

16.05 x 14.27 x 8.13

Optional Inner Panel

14R1513

Width

14.27

Length

16.05

Height

8.13

Operating Temperature

-40C to +130C

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Manufacturers Series Page

Click Here

Gasket

Captive oil resistant gasket provides a positive seal

Overall Dims

(16.05 x 14.27 x 8.13)

Cover

Clear

Panel Length

14.75

Panel Width

12.88

Pricing Note

Price change ~15.0% on 10/01/22

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Hammond Product Photo

Click Here

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

Mounting

Feet

IEC

60529, IP66

Eccn

EAR99

Hammond Product Type

enclosure

Hammond Product Group

electrical

Hammond Series

PJUHF

UV Rating

Enhanced UV inhibitors protect against outdoor weathering

UPC

623980021768

Lead-Time Weeks

2

Standard Stock

Yes

Weight LBs

11

Series-Description

Type 4X Polyester Junction Box Continuous Hinge Door with Screws
