PJ20168R

Hammond Mfg. | PJR | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant
PJR

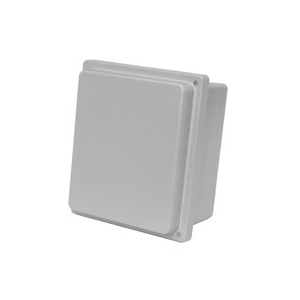

N4X Wallmount Encl - 20.00 x 16.00 x 8.13 - Fiberglass NON MET RAISED SCREW CVR (20 x 16 x 8.13) Hammond PN PJ20168R : UPC [623980416014]

$359.20

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

CAD File

Click Here

CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

20.00 x 16.00 x 8.13

Optional Inner Panel

P2068

Width

16.00

Length

20.00

Height

8.13

Manufacturers Series Page

Click Here

Operating Temperature

-40C to +130C

Gasket

Captive oil resistant gasket provides a positive seal

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Pricing Note

Price change ~15.0% on 10/01/22

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Panel Length

18.44

Cover Opacity

Solid

Overall Dims

(20 x 16 x 8.13)

Cover Type

Raised Lift-Off

Panel Width

14.44

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

Eccn

EAR99

Hammond Product Photo

Click Here

IEC

60529, IP66

Hammond Product Group

electrical

Hammond Product Type

enclosure

Hammond Series

PJR

Lead-Time Weeks

2

UPC

623980416014

UV Rating

Enhanced UV inhibitors protect against outdoor weathering

Standard Stock

Yes

Weight LBs

19

Series-Description

Type 4X Polyester Junction Box
