PJ18168W

Hammond Mfg. | PJW | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
PJW

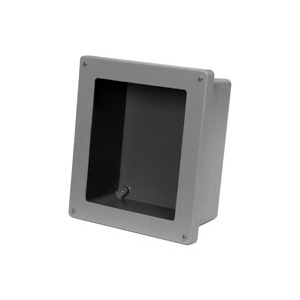

N4X Wallmount Encl - 18.40 x 16.40 x 8.13 - Fiberglass NON MET SCREW CVR/WINDOW (18.4 x 16.4 x 8.13) Hammond PN PJ18168W : UPC [623980415697]

$336.20

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

Overall DIMs (L x W x H) Inch

18.40 x 16.40 x 8.13

Series Photo

Click Here

CAD URL

Click Here

CAD File

Click Here

Width

16.40

Optional Inner Panel

P1868

Length

18.40

Height

8.13

Operating Temperature

-40C to +130C

Manufacturers Series Page

Click Here

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Hammond Product Photo

Click Here

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Pricing Note

Price change ~15.0% on 10/01/22

Panel Width

14.88

Panel Length

16.88

Cover Type

Window Lift Off

Overall Dims

(18.4 x 16.4 x 8.13)

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

NEMA

Type 1, 2, 3, 4, 4X, 12, & 13

Eccn

EAR99

IEC

60529, IP66

Cover Width

17.86

Cover Length

15.86

Window Length

14

Hammond Product Type

enclosure

Hammond Series

PJW

Window Width

12

Hammond Product Group

electrical

UPC

623980415697

Lead-Time Weeks

3

Standard Stock

No

Weight LBs

17

Series-Description

Type 4X Polyester Junction Box

Not available at this time.
