PJ18168T

Hammond Mfg. | PJL | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 10
onlycheckmark RoHs Compliant
PJL

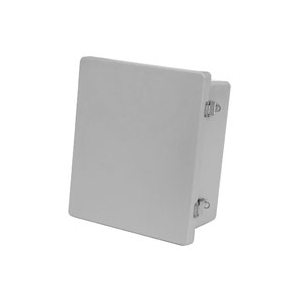

N4X Wallmount Encl - 18.40 x 16.40 x 8.13 - Fiberglass NON METALLIC TWIST LATCH (18.4 x 16.4 x 8.13) Hammond PN PJ18168T : UPC [623980951607]

$255.10

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

CAD File

Click Here

CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

18.40 x 16.40 x 8.13

Optional Inner Panel

P1868

Length

18.40

Height

8.13

Width

16.40

Operating Temperature

-40C to +130C

Manufacturers Series Page

Click Here

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Pricing Note

Price change ~15.0% on 10/01/22

Panel Width

14.88

UL 508A

Type 1, 2, 3, 4, 4X, 12, & 13

Cover

Solid

Overall Dims

(18.4 x 16.4 x 8.13)

Eccn

EAR99

Panel Length

16.88

NEMA

Type 1, 2, 3, 4, 4X,12, & 13

Hammond Product Photo

Click Here

Latching

Metal Twist Latch

IEC

60529, IP66

CSA

Type 1, 2, 3, 4, 4X, 12, & 13

Cover Width

18.00

Cover Length

20.00

Hammond Product Group

electrical

Hammond Product Type

enclosure

Hammond Series

PJL

Lead-Time Weeks

2

UPC

623980951607

UV Rating

Enhanced UV inhibitors protect against outdoor weathering

Series-Description

Type 4X Polyester Junction Box with Continuous Hinge

Standard Stock

Yes

Weight LBs

17

Not available at this time.
