PJ14126W

Hammond Mfg. | PJW | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
PJW

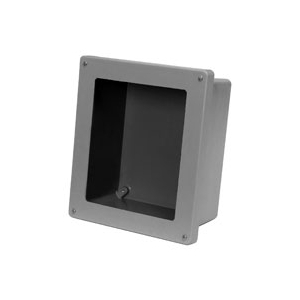

N4X Wallmount Encl - 14.13 x x12.26 x 6.13 - Fiberglass NON MET SCREW CVR WINDOW (14.13 x 12.26 x 6.13) Hammond PN PJ14126W : UPC [623980415673]

$252.50

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

Overall DIMs (L x W x H) Inch

14.13 x 12.26 x 6.13

Series Photo

Click Here

CAD URL

Click Here

CAD File

Click Here

Width

12.26

Optional Inner Panel

14R1311

Length

14.13

Height

6.13

Operating Temperature

-40C to +130C

Manufacturers Series Page

Click Here

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Hammond Product Photo

Click Here

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Pricing Note

Price change ~15.0% on 10/01/22

Panel Width

10.88

Panel Length

12.75

Cover Type

Window Lift Off

Overall Dims

(14.13 x 12.26 x 6.13)

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

NEMA

Type 1, 2, 3, 4, 4X, 12, & 13

Eccn

EAR99

IEC

60529, IP66

Cover Width

14.32

Cover Length

12.45

Window Length

12.37

Hammond Product Type

enclosure

Hammond Series

PJW

Window Width

10.5

Hammond Product Group

electrical

UPC

623980415673

Lead-Time Weeks

3

Standard Stock

Yes

Weight LBs

11

Series-Description

Type 4X Polyester Junction Box

Not available at this time.
