PJ14126RHW

Hammond Mfg. | PJR | JunctionBox-NonMetal
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
PJR

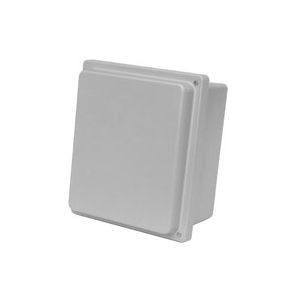

N4X Wallmount Encl - 14.13 x x12.26 x 6.13 - Fiberglass NON MET HNG RAISED SCREW CVR (14.13 x 12.26 x 6.13) Hammond PN PJ14126RHW : UPC [623980416274]

$262.60

Min: 1  Mult: 1

Product Attributes

3D CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

14.13 x 12.26 x 6.13

CAD URL

Click Here

CAD File

Click Here

Length

14.13

Optional Inner Panel

14R1311

Height

6.13

Width

12.26

Manufacturers Series Page

Click Here

Operating Temperature

-40C to +130C

Gasket

Captive oil resistant gasket provides a positive seal

Construction

Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled

Panel Width

10.88

Panel Length

12.75

Overall Dims

(14.13 x 12.26 x 6.13)

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

Window Length

12.37

Pricing Note

Price change ~15.0% on 10/01/22

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

Cover Opacity

Window

Cover Type

Raised Hinged

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

Window Width

10.50

Eccn

EAR99

Hammond Product Photo

Click Here

IEC

60529, IP66

Hammond Product Group

electrical

Hammond Product Type

enclosure

Hammond Series

PJR

Lead-Time Weeks

3

UV Rating

Enhanced UV inhibitors protect against outdoor weathering

UPC

623980416274

Weight LBs

11

Standard Stock

No

Series-Description

Type 4X Polyester Junction Box

Not available at this time.
