Product Attributes

Cover Latched Via

Screw Cover

Internal Panel PN

PCJR0808

Material

Polycarbonate

Mounting Style

Mounting Feet

Overall Depth

3.98

Finish

Light gray

IEC 60529

IP66

Overall Length

7.94

MFG-Data-Sheet

Click Here

Overall LxWxD

7.94 x 8.15 x 3.98

Overall Width

8.15

UL 508

Type 1, 2, 3, 4, 4X, 12 and 13

3D CAD URL

Click Here

Series Photo

Click Here

Overall DIMs (L x W x H) Inch

7.94 x 8.15 x 3.98

CAD File

Click Here

CAD URL

Click Here

Height

3.98

Width

8.15

Length

7.94

Optional Inner Panel

PCJR0808

Manufacturers Series Page

Click Here

Operating temperature

-35C to +130C

Construction

Injection moulded polycarbonate thermoplastic enclosure with matching cover is easily punched, cut, or drilled

Gasket

Captive oil resistant gasket provides a positive seal

Cover

Solid - Screw

Panel Width

6.88

Pricing Note

Price change ~2.0% on 10/01/22

Panel Length

6.75

UL 508A

Type 1, 2, 3, 4, 4X, 12 and 13

CSA

Type 1, 2, 3, 4, 4X, 12 and 13

Eccn

EAR99

Overall Dims

(8 x 8 x 4)

IEC

60529, IP66

NEMA

Type 1, 2, 3, 4, 4X, 12 and 13

Mounting

Feet

Hammond Product Photo

Click Here

Hammond Product Group

electrical

Hammond Series

PCJ-SC

Hammond Product Type

enclosure

UV rating

(f1) per UL746C - UV stabilized for outdoor use

Lead-Time Weeks

2

Flamability

V-O per UL 94

UPC

623980154121

Series-Description

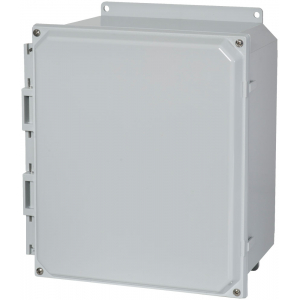

Type 4X Polycarbonate Junction Box (Screw Cover)

Standard Stock

Yes
