186D12

Hammond Mfg. | 186-187 POWER TRANSFORMERS | Enclosures
yellow-timer-icon Factory Lead Time: 15
onlycheckmark RoHs Compliant
Open Frame Low Voltage Chassis Mount Transformer with DUAL 115/230 VAC Primary & 12.6V C.T. Secondary 2.5 Amps, 31.5 VA Rated, with Quick Connect÷Solder Terminals

$15.90

Min: 1  Mult: 1

Product Attributes

CAD File

Click Here

Style

Open Style Chassis Mount

Series Photo

Click Here

Amps

2.5

Secondary Voltage (VAC)

12.6V C.T.

Primary

DUAL 115/230 VAC

VA Rating

31.5

UL

Recognized

Terminals

Combination Solder & Quick Connect

CSA

Certified

Frequency

50/60 Hz

Construction

Split Bobbin

Manufacturers Series Page

Click Here

Pricing Note

Price change ~5.0% on 10/01/22

Primary Voltage

115 / 230 VAC

Secondary (Rms) Vac

12.6V C.T.

Secondary Current (Amps)

2.5

Power Rating (Va)

31.5

Eccn

EAR99

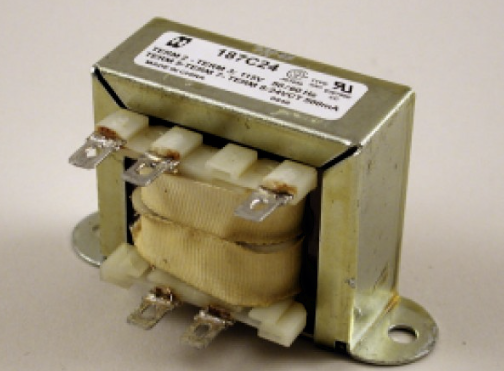

Hammond Product Photo

Click Here

Hi-Pot Tested

>2KV RMS

Overall Length

3.25(In)

Hammond Product Group

transformers

Hammond Product Type

transformer

Hammond Series

186-187

Depth W/O Term

1.68(In)

Height

1.93(In)

Drawing

6D

Overall Depth

2.055(In)

Mounting Centers

2.81(In)

Lead-Time Weeks

3

UPC

623980761084

Standard Stock

Yes

Not available at this time.
