filter--iconPrice List

101V

Hammond Mfg. | 101 | Enclosures
yellow-timer-icon Factory Lead Time: 20
onlycheckmark RoHs Compliant
101
Audio transformer, potted, primary impedance 2500 CT, secondary impedance 50 CT AUDIO TX POTTED Hammond PN 101V : UPC [623980178608]

$17.30

Min: 1  Mult: 1

Product Attributes

Mount

P.C. PIN board mount

Series Photo

Click Here

Construction

Rugged potted, completely sealed

Primary Nominal Impedance

2500 ct

Secondary Nominal Impedance

50 ct

Secondary Nominal Resistance

4.9

Primary Nominal Resistance

150.7

Manufacturers Series Page

Click Here

Eccn

EAR99

Secondary Nominal Impedance (Ohms)

50 CT

Useful Impedance Range (Ohms) Pri/Sec To Pri/Sec

1250/25 to 5000/100

Primary Nominal Resistance (Ohms)

150.7

Primary Nominal Impedance (Ohms)

2500 CT

Width

0.45

Pricing Note

Price change ~5.0% on 10/01/22

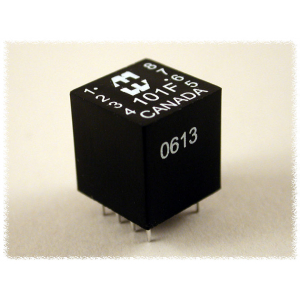

Hammond Product Photo

Click Here

Length

0.45

Height

0.48

Hammond Series

101

Hammond Product Type

transformer

Hammond Product Group

transformers

Frequency range @ +20 dbm

300 Hz. to 100 Khz. +/- 0.5 db

UPC

623980178608

Frequency range @ +10 dbm

200 Hz. to 100 Khz. +/- 0.5 db

Lead-Time Weeks

4

Frequency range @ +15 dbm

200 Hz. to 100 Khz. +/- 0.5 db

Standard Stock

Yes
