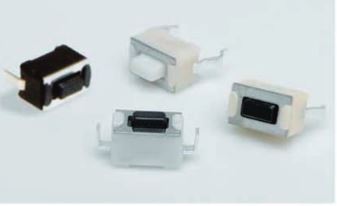

TL1107Product Attributes
Package Type
BULK
Alternate PN
P010383
Drawing Number
P010383
MSL
1
PKG TYPE
EA
Actuator Length
5.0 mm
Operating Force
180 +/- 50 gf
Termination
Straight Lead
Contact Material
Silver
Series Attributes
Actuator Height off PCB from Pins
4.30mm - 5.00mm
Insulation Resistance
1000 Mega Ohms min
Life Expectancy
50,000
Mounting Type
Through Hole
Operating Temp
-20C to +70C
Packaging style
Bulk
Switch Function
Off-Mom
Switch Travel
3.05mm
Terminal Material
Silver Plated
Illumination
Non-Illuminated
Housing Material
4/6 Nylon
Dielectric Strength
250 VAC
Actuator Material
4/6 Nylon
Actuator Orientation
Top Actuated
Actuator Type
Rectangular Button
Case Material
DAP
Circuit
SPST-NO
Contact Rating
50mA at 12 VDC
Contact Resistance
10milli Ohms max typical @ 2-4 VDC, 100mA
Cover Material
Stainless Steel
Termination Style
PC Pin
