800SP9B5M1QEC2BLK

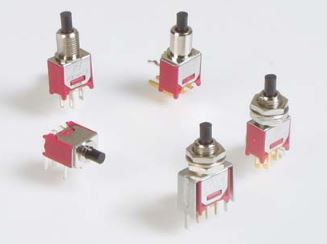

E-Switch | 800 | SubMiniature Push
yellow-timer-icon Factory Lead Time: TBD
onlycheckmark RoHs Compliant
800
SPST Off - (On) Sub Miniature switch with Flat THD Bushing and Solder Lug Terminals with Silver contacts. Black Cap and Round, 7.45mm diameter, 3.5 mm Height Cap Style

$2.36

Min: 1  Mult: 1

Product Attributes

Switch Function

SPST Off - (On)

Bushing

Flat THD

Bushing Dim (Height)

0.220

Plunger Height from Bushing

0.140

Plunger Diameter

0.100

Termination

Solder Lug

Contact Material

Silver

Fixed Terminal Material

Silver plated copper alloy

Electrical Rating

3 AMPS @ 120 VAC; 1 AMP @ 250VAC

Moving Contact Material

Silver plated copper alloy

Seal

Epoxy sealed at Base of Terminal

Hardware

No Hardware

Cap Option

Round, 7.45mm diameter, 3.5 mm Height

Cap Color

Black

Actuation Force

200 +/- 50 gf

Plunger Material

Glass Filled Nylon or Glass Filled Polyester

Operating Temp

-30C to +85C

Life Expectancy

50,000 cycles

Insulation Resistance

1000 Mega Ohms min

Housing Material

Stainless Steel

Dielectric Strength

1000V rms @ Sea Level

Contact Resistance

10milli Ohms max typical @ 2-4 VDC, 100mA

Contact Rating

1A at 250 VAC, 3A at 120 VAC or 28 VDC

Certification

RoHS

Case Material

DAP

Bushing Material

Nickel Plated Brass

Travel

3.0 mm
