RoHs Compliant
500Product Attributes
Package Type
BULK
Alternate PN
T511008
MSL
1
Drawing Number
T511008
PKG TYPE
EA

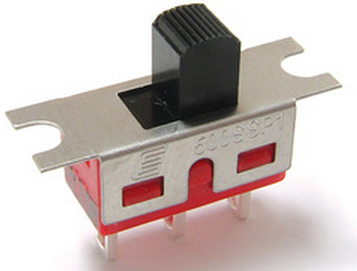

Switch Function
Single Pole-On-None-On
Actuator style
Standard 0.2 in (5.08)
Termination
P.C Mount
Contact Material
Silver
Contact Rating
5A at 120 VAC, 2A at 250 VAC
Seal
Epoxy sealed at Base of Terminal
Mounting Tab
Without Tabs
Series Attributes
Case Material
DAP, UL 94V0
Contact Resistance
10milli Ohms max typical @ 2-4 VDC, 100mA
Dielectric Strength
1000 Vrms @ Sea Level
Handle Material
Nylon UL 94HB
Housing Material
Stainless Steel
Insulation Resistance
1000 Mega Ohms min
Life Expectancy
50,000 make and break cycles at full load
Operating Temp
-30C to +85C
