700ADP7B21M7QE

E-Switch | 700A | Pushbutton
yellow-timer-icon Factory Lead Time: 84
onlycheckmark RoHs Compliant
700A

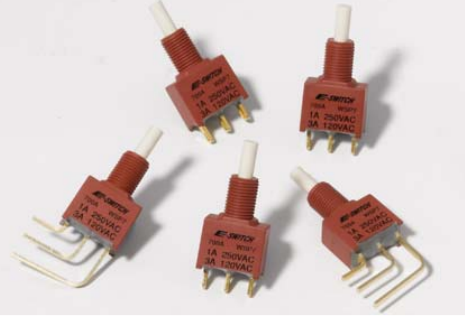

IP67 Pushbutton DPDT On – (on) Switch with NON-THD Bushing and Vertical Right Angle terminals and Silver Contact

$5.60

Min: 216  Mult: 72

Product Attributes

Package Type

BULK

Alternate PN

T750103

MSL

1

Drawing Number

T750103

PKG TYPE

EA

Switch Function

DPDT On – (on)

Bushing

NON-THD

Termination

Vertical Right Angle

Contact Material

Silver

Contact Rating

3A at 120 VAC or VDC, 1A at 250 VAC

Seal

Epoxy seal on Terminals (standard)

Actuator Material

Nylon, UL94VO

Contact Resistance

20m 1

Dielectric Strength

1500V RMS

Housing Material

Nylon, UL94VO

Insulation Resistance

1000M 1

Life Expectancy

50,000 cycles

Operating Temp

-30C to +85C

Rating

IP 67

Terminals Material

Silver or Gold Plated Copper Alloy
