RB212C1011-136

E-Switch | RB2 | Illuminated Rocker
green-check-icon Total Stock: 901
yellow-timer-icon Factory Lead Time: 87
onlycheckmark RoHs Compliant
RB2

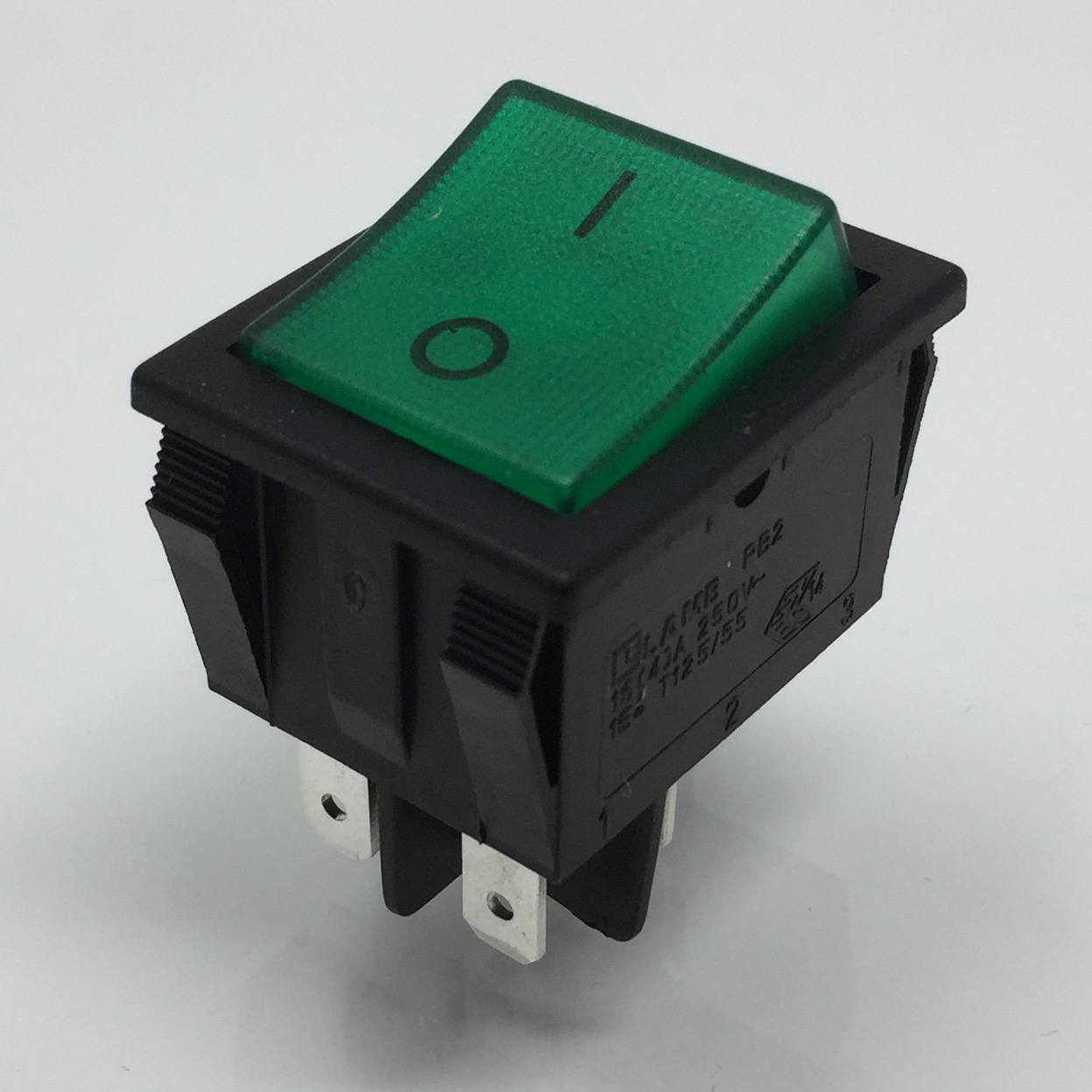

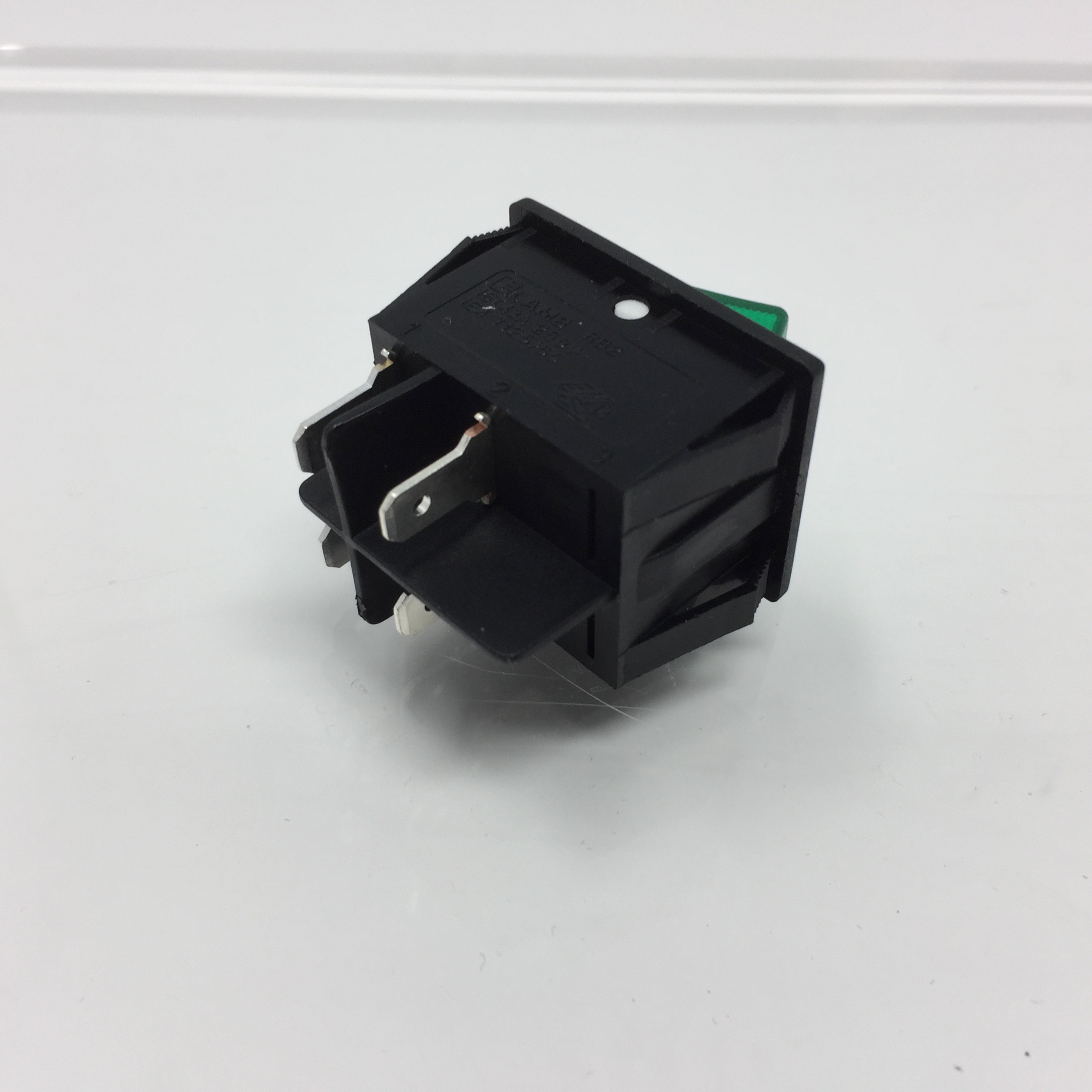

Full Illum Curved Rocker 16A @ 125V Double Pole Off-On Rocker Switch with 4.8mm Tabs Terminals and I/O Vert Markings

$1.20

Min: 3000  Mult: 50

Product Attributes

Drawing Number

38-RB212C1011136

Package Type

BULK

Alternate PN

38-RB212C1011136

PKG TYPE

EA

Rocker Style

Curved Rocker

Terminals

4.8mm Tabs

Function

Double Pole Off-On

Electrical Rating

16A @ 125V

Body Color

Black

Actuator Color

Full Illum

Marking Color

Black

Marking Type

I/O Vert

Lens Style

Full

Lens Color

Green

Lamp Voltage

125V

Contact Resistance

35mOhms Max at 50VAC

Panel Cutout

22x30 mm

Material Contacts

Silver over Copper

Material Body

Polyamide 6/6 UL94 V-2

Material Actuator

Polyamide 6/6 UL94 V-2 Polycarbonate

Insulation Resistance

100MOhms min at 500VAC

Ingress Protection

IP54 with PVC CAP

Electrical Life

10,000 Cycles

Dielectric Strength

1,500VAC for 1 Minute

Temperature Range

-20C to +65C Min
