PV6F240SS-321

E-Switch | PV6 Anti-Vandal | 16MM Illuminated

Total Stock: 1

Factory Lead Time: 91

RoHs Compliant

PV6

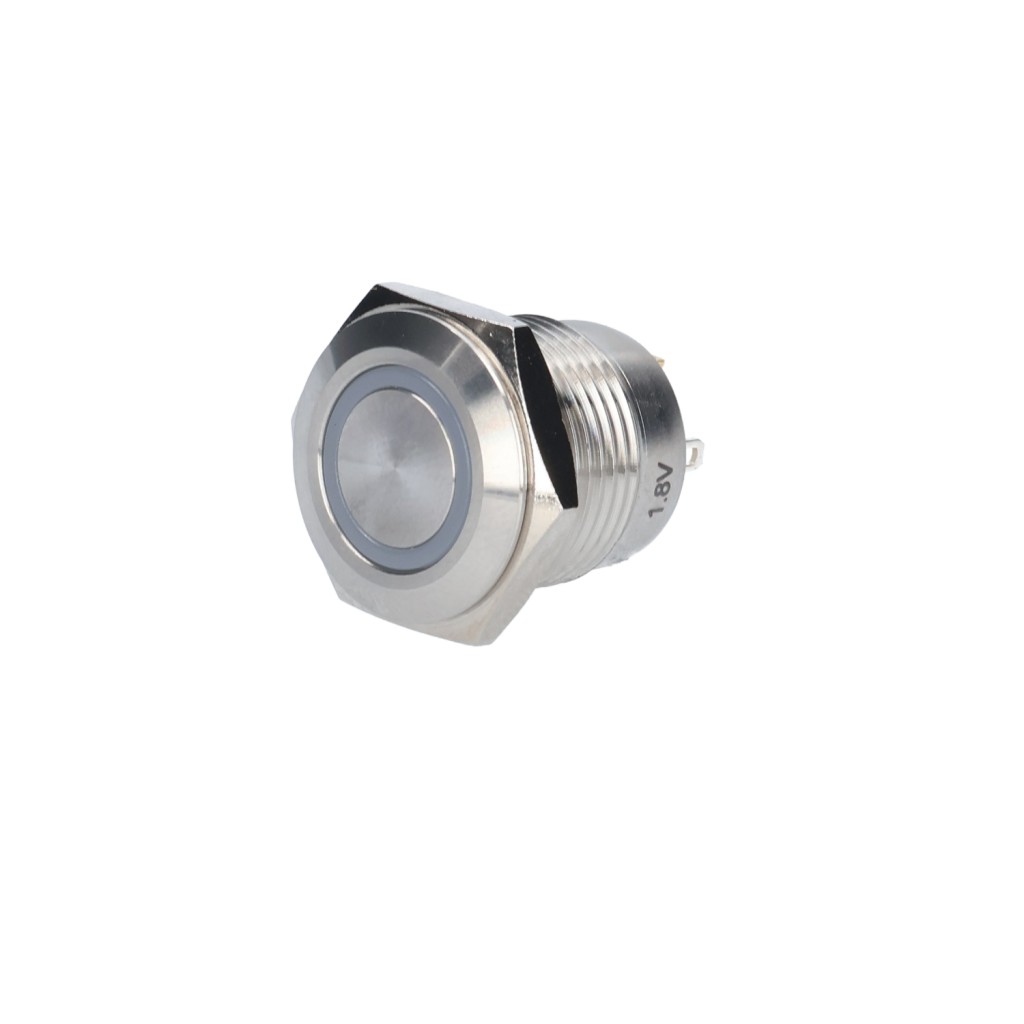

E-Switch Anti-Vandal Off-(On) Switch with Stainless Steel Body and Stainless Steel Actuator Finish. Orange Ring-Illumination Lens and Silver Contacts. Actuator is in the Flat Position.

$9.70

Product Attributes

Package Type

BULK

Alternate PN

52-PV6F240SS321

MSL

1

Drawing Number

52-PV6F240SS321

PKG TYPE

EA

Actuator Options

Flat

Terminals Options

Solder

Switch Function

Off-(On) Switch

Rating

2A 48VDC

Body Finish

Stainless Steel

Actuator Finish

Stainless Steel

Contact Material

Silver

Lens Style

Ring-Illumination

LED Color

Orange

Illumination Voltage

Base Voltage

Series Attributes

Actuation Force

400 gf

Panel Thickness

1-10mm

Operating Temperature

-20C to +55C

Mounting Nut Torque

5-14Nm

Moisture Protection

IP65

Mechanical Life

1,000,000 Cycles

Insulation Resistance

1000 MOhms Max

Electrical Life

50,000 Cycles

Dielectric Strength

2000VAC

Contact Resistance

50 mOhms Max

Contact Arrangement

SPST Off-(On)

Storage Temperature
