filter--iconPrice List

25060.1

CONTA-CLIP | STMPATPE | Cord Grip
yellow-timer-icon Factory Lead Time: 22
onlycheckmark RoHs Compliant
STMPATPE

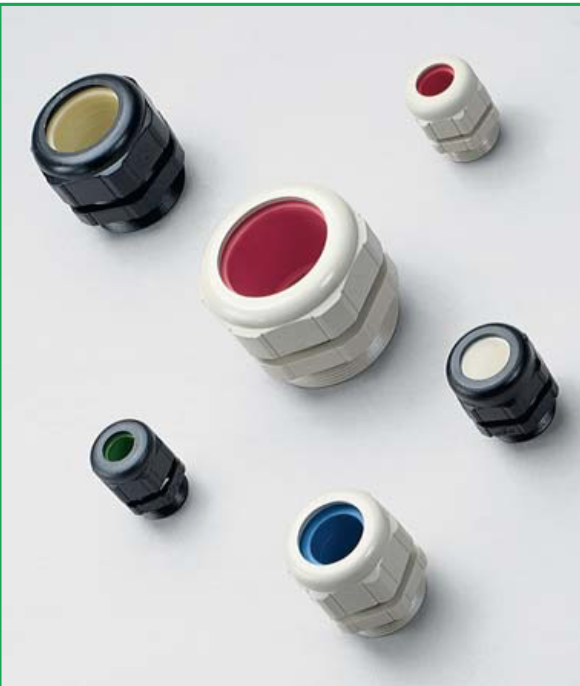

Contaclip Straight Through Cord Grip Black Polyamide with Thermoplastic Elastomer Metric M 40 x 1.5 { PFLITSCH M40x1.5/HP/PA/TPE/BK/15.5/ST } Contaclip Catalog # 25060.1

$9.00

Min: 5  Mult: 1

Product Attributes

Material

Polyamide with Thermoplastic Elastomer

Cord Grip Type

Straight Through

Tread Details

M40x1.5

Insert Color

White

Color

Black

Cable Dia. (mm)

11.5-15.5

Cable Dia. (in)

(.45-.61)

Short Desc

M40x1.5/HP/PA/TPE/BK/15.5/ST

Thread Detail

M 40 x 1.5

Thread Diameter mm (in)

40.0 (1.57)

Thread Length mm (in)

11.5 (.45)

Thread Type

Metric

Dome Length mm (in)

34.0 (1.34)

Pkg Size

10

Nut Flat Length mm (in)

46.0 (1.81)

Nut Accross Corners mm (in)

50.0 (1.97)

Hardware (Seal

Sold Separately

Length mm (in)

45.5 (1.79)

Pressure Rating

10Bar;140psi

Protection Rating

IP68, NEMA 4X

Operating Temperature

-20C to +100C

Light Grey Nut PN

25515.9

Material Body

Polyamide

Material Insert

Thermoplastic Elastomer

Sealing Ring PN

25735.9

Black Nut PN

25725.9

Not available at this time.
