Product Attributes

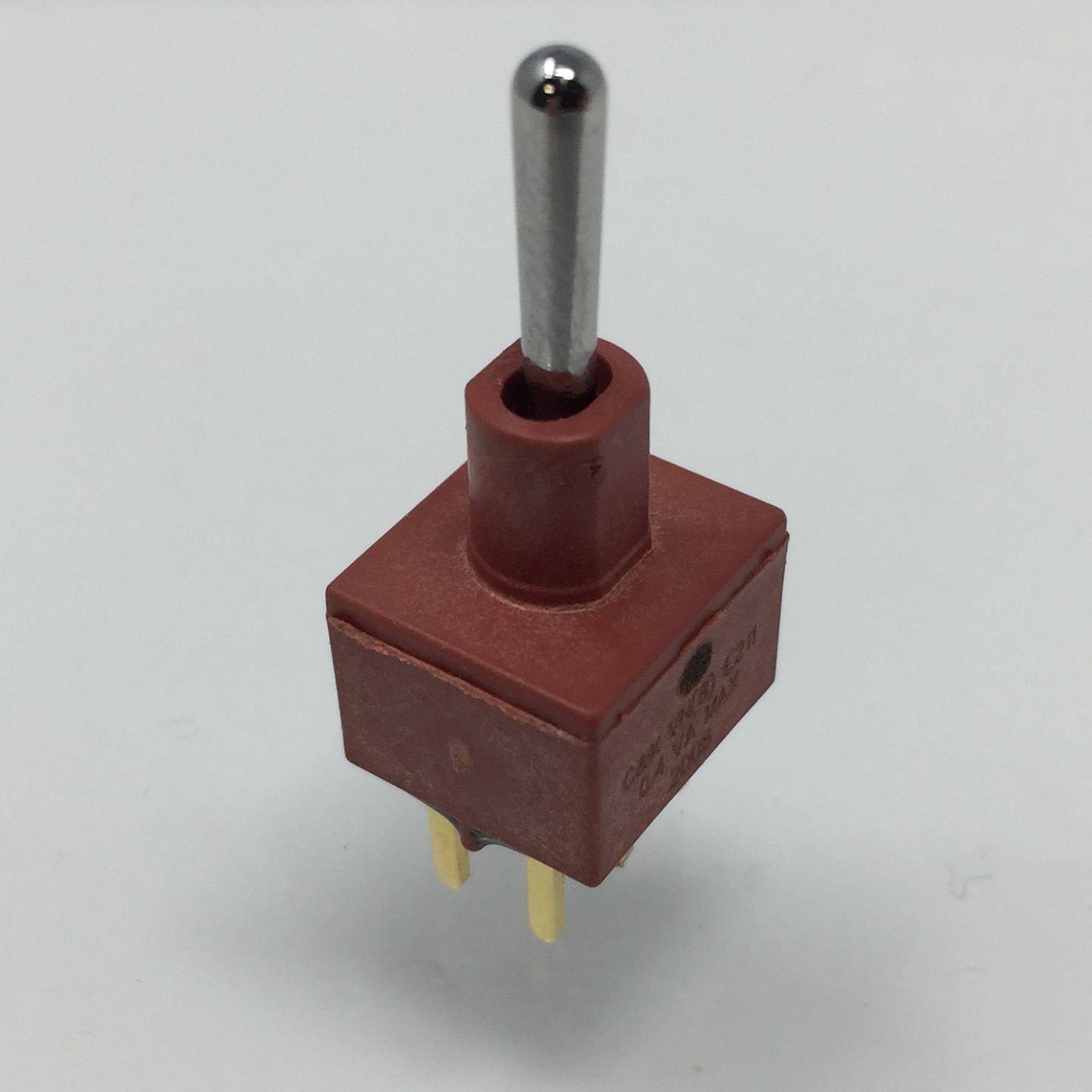

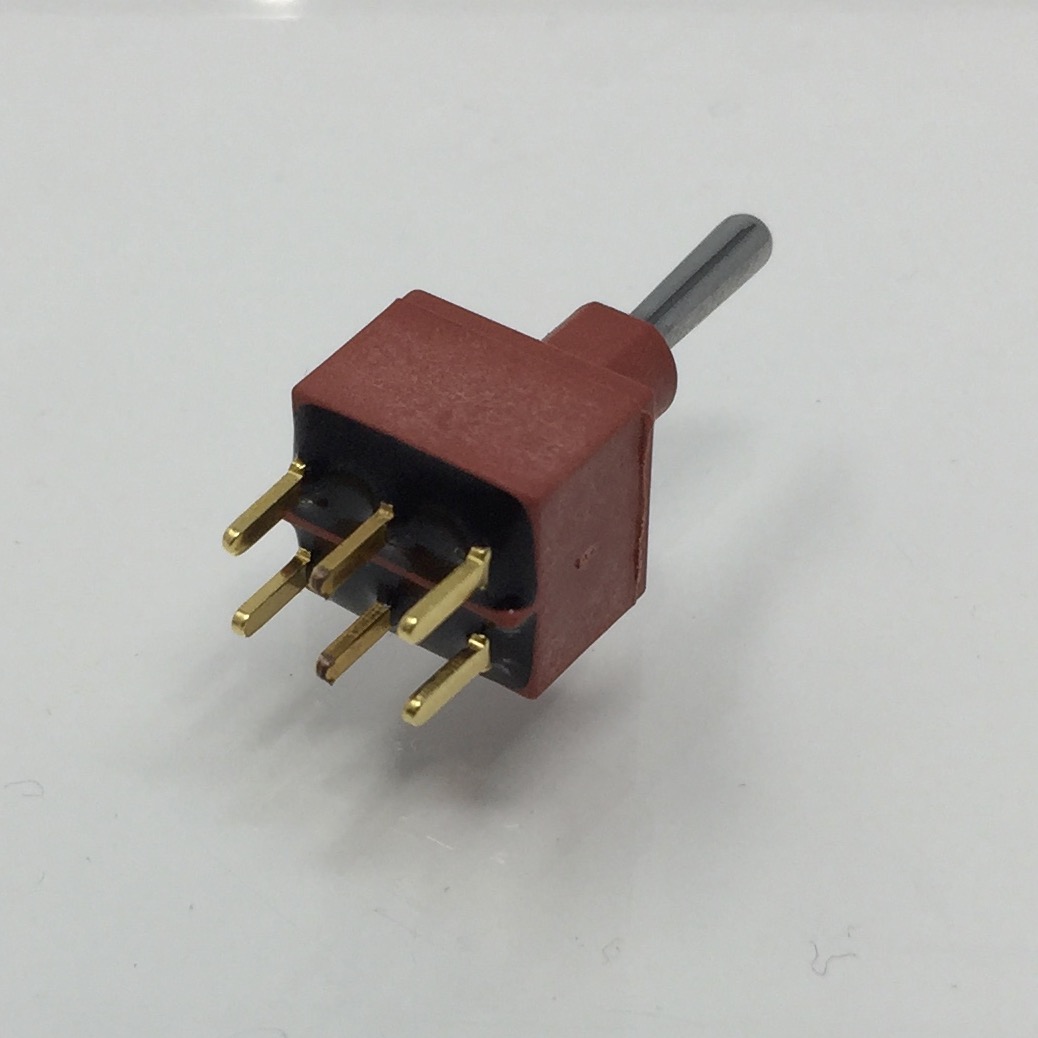

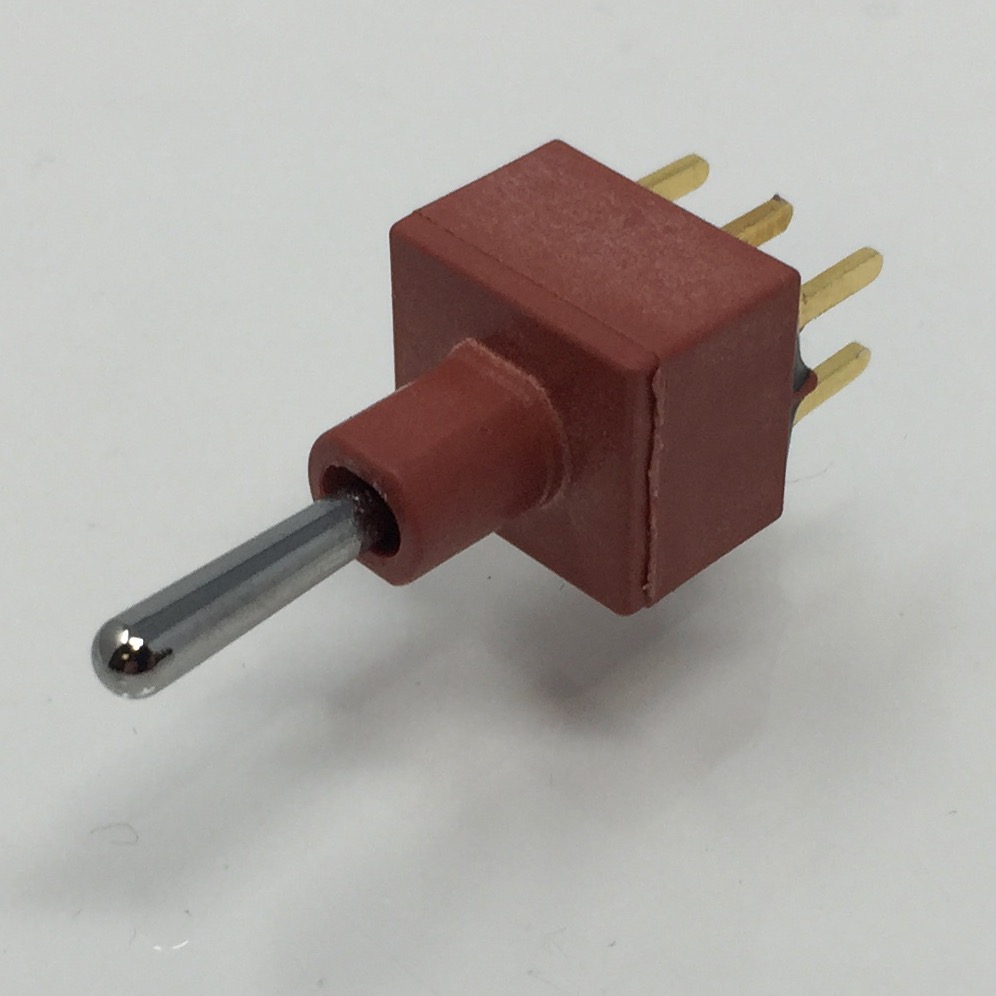

Product Type
Toggle
LEAD-Time Text
11 Weeks
Lead Time Notes
8 - 10 Weeks
Switch Function
DP, On-On-On
Electrical Life
40,000 make and break cycles at full load
Actuator
.500 inches high
Bushing
.280 inches high
Electrostatic Discharge Option
N/A
Bushing Material Note
None
Terminations
PC Thru-hole
Contact Material
Gold
Seal
Epoxy
Series Attributes
Actuator Material
Brass, Chrome plated with internal o-ring seal standard
Switch Support Retainer Material
Stainless steel
Switch Support Material
Brass or Steel, matte-tin plated
Solderability
Per MIL-STD-202F method 208D, or EIA RS-186E method 9 (1 hour steam aging)
Operating Temp
-30C to +85C
Insulation Resistance
10 to the ninth degree Ohms per minute
Hardware Material
Nut and Locking ring – Brass, Nickel plated. Lockwasher – Steel, Nickel plated
Dielectric Strength
1000 Vrms min at sea level
Degree of Protection
IP57, protection against harmful dust deposit, full scale voltage protection, temporary immersion
Contact Resistance
Below 10 milli Ohms typ. Initial at 2-4 VDC, 100 mA, for both Silver and Gold plated contacts
Case Materials
Glass filled nylon 6/6, flame retardant, heat stabilized (UL 94V-0).
Bushing Materials
Glass filled nylon 6/6, flame retardant, heat stabilized (UL 94V-0).
Terminal Seal material
Epoxy
