Product Attributes
Tariff 301
This item is currently subject to a tariff of 15%

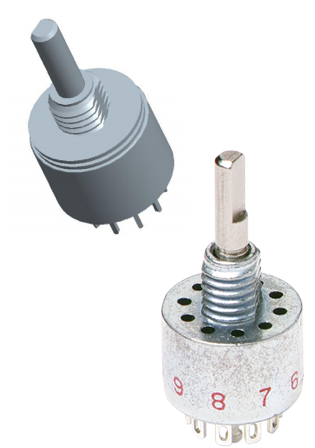

Product Type
Rotary
Lead Time Notes
12 - 14 Weeks
Switch Function
SP, 10 Pos 36(o)
Stopping Method
Stop Pin
Number of Positions
10
Actuator Material
Stainless Steel
Actuator Style
.650 Long Flatted
Shorting Contacts
Non-Shorting
Terminals
PC Thru-hole
Contact Materials
Gold over Silver
Electrical Rating
0.4 VA Max @ 20VAC or 20DC Max or Carry:6A Continuous. Switch 250mA @ 125VAC or 28VDC
Seal
IP67 (Splashproof shaft & panel seal)
Series Attributes
Contact Resistance
< 20mOhms typ initial @ 2-4 VDC, 100mA
Solderability
MIL-STD-202F Method 208D or EIA RS-186 method 9
Operating Torque
4-7 Ounces-inches Typical Initial
Operating Temperature
-30C to +85C
Material Stop Ring
Brass
Material Stop Pin
Stainless Steel
Material Rotor
Glass filled polyester (UL 94V-0)
Material Nut
Nickel plated over Brass
Material Lockwasher
Nickel Plated over Steel
Material Housing
Zinc Alloy, bright zinc plated, clear chromate finish
Material Contact Spring
Music wire, phosphate coated
Material Bushing
Zinc Alloy, bright zinc plated, clear chromate finish
Material Base
Diallyphthalate (DAP) or melamine phenolic with insert molded terminals
Insulation Resistance
10(to the 10) Ohms Min
Electrical Life
10,000 Make-and-break cycles at 150 mA, 125V AC or 28VDC
Dielectric Strength
600 Vrms min @ Sea Level
Storage Temperature
-30C to +85C
